Author: Site Editor Publish Time: 2025-12-24 Origin: Site

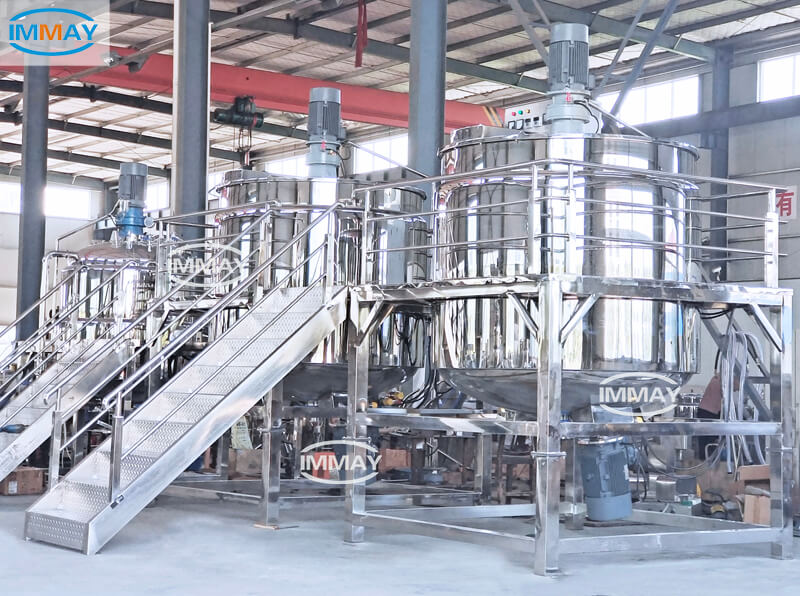

Stainless steel mixing tanks are widely used industrial vessels designed to support controlled mixing, blending, and material processing across diverse manufacturing environments. Their role extends beyond simple agitation, as mixing performance directly influences process stability, material uniformity, and batch repeatability in industrial production.
Because different processes impose different demands on mixing behavior, temperature control, and mechanical intensity, stainless steel mixing tanks are not manufactured as a single standardized form. Instead, they are developed in multiple types, each tailored to specific functional objectives and structural requirements. These variations allow mixing systems to adapt to changes in material viscosity, formulation complexity, and operational conditions.
By classifying stainless steel mixing tanks according to functional purpose and structural design, manufacturers can better align equipment selection with actual process needs. This approach supports more predictable mixing outcomes and provides a practical foundation for optimizing industrial production workflows across a wide range of applications.
A stainless steel mixing tank is an industrial processing vessel designed to create controlled and uniform material interaction through mechanical agitation. Its primary function is not only to mix liquids or slurries, but to support stable processing conditions where consistency, repeatability, and material behavior control are critical.
In industrial applications, mixing tanks are used across sectors such as food processing, pharmaceuticals, chemicals, and biotechnology, where different formulations impose distinct requirements on shear intensity, temperature control, and mixing uniformity. As a result, stainless steel mixing tanks are engineered as process-oriented equipment rather than simple containers.
The structure and configuration of a stainless steel mixing tank are determined by production objectives and material characteristics. Factors such as viscosity range, heat sensitivity, and processing sequence influence tank design, agitation method, and auxiliary systems. This adaptability allows mixing tanks to be customized or standardized according to specific operational needs, forming the foundation for efficient and reliable industrial mixing processes.
The structure of a stainless steel mixing tank is designed around process adaptability rather than a fixed mechanical form. To accommodate different materials, operating conditions, and mixing objectives, the tank integrates multiple functional components that work together to ensure stable mixing performance and reliable operation.
The tank body serves as the primary processing chamber and is typically fabricated from stainless steel to provide corrosion resistance, mechanical strength, and process cleanliness. Its sealed construction helps maintain material integrity during mixing while isolating the process from external influences.
From a structural perspective, stainless steel mixing tanks are commonly designed as single-layer, jacketed double-layer, or insulated three-layer configurations. Single-layer tanks are suitable for basic mixing tasks where temperature control is not required. Jacketed designs introduce a heat-transfer layer that supports heating or cooling, allowing the mixing process to remain stable when material viscosity or reaction behavior is temperature-dependent. Three-layer structures further incorporate insulation to reduce heat loss and improve thermal efficiency during extended processing cycles.
Tank geometry also plays an important role in mixing performance. Cylindrical vessels are widely adopted for their balanced flow characteristics, while bottom designs such as conical or dished heads facilitate material discharge and reduce residual buildup after processing.
The agitation system is the core functional element of a stainless steel mixing tank, directly determining flow patterns, shear intensity, and mixing efficiency. Different agitator designs are selected based on material viscosity, flow requirements, and process sensitivity.
Anchor agitators are commonly used for medium- to high-viscosity materials, where their close-to-wall sweeping action promotes radial circulation and helps prevent material adhesion on the tank surface.
Paddle agitators provide gentle mixing with limited axial flow and are often applied in solid–liquid blending or crystallization processes where excessive shear is undesirable.
Propeller agitators generate strong axial flow and are suitable for low-viscosity fluids and suspension formation, offering a simple and efficient solution for basic mixing tasks.
Turbine agitators provide greater flexibility in flow pattern control, as their design can be adjusted to produce either radial or axial flow. This makes them suitable for applications involving gas dispersion, suspended solids, or more demanding mixing conditions.
Helical agitators combine axial and radial motion through their spiral geometry, enabling effective mixing of viscous materials with improved vertical circulation.
In addition to conventional agitation, many stainless steel mixing tanks are equipped with a high shear homogenizing system to address processes that require intensive dispersion or emulsification. Unlike standard agitators that primarily promote bulk material movement, high-shear systems operate by generating localized mechanical energy to refine material structure at a microscopic level.
High shear homogenizers typically function through a rotor–stator configuration, where materials are subjected to intense shear forces as they pass through narrow gaps at high rotational speeds. This mechanism enables effective particle size reduction, phase dispersion, and the formation of stable emulsions, particularly in formulations involving immiscible components or high-viscosity materials.
The integration of a high shear homogenizing system allows the mixing tank to handle processes that demand both macroscopic circulation and precise structural control. Such systems are commonly applied in the production of creams, pastes, emulsions, and other formulations where uniform texture and consistent internal structure are essential to process performance.
The tank cover forms a sealed interface between the internal mixing environment and external operations. It prevents material splashing and contamination while supporting essential process functions. Depending on process requirements, the cover may integrate feed ports, discharge connections, observation windows, and instrumentation interfaces.
Additional accessories such as sight glasses, manholes, pressure-balancing components, and internal cleaning devices enhance operational visibility, maintenance accessibility, and process reliability. These elements allow operators to monitor material behavior, perform inspections, and maintain stable internal conditions throughout the mixing cycle.
The support system ensures the mechanical stability of the mixing tank during operation. Depending on site layout and installation conditions, tanks may be mounted on floor-standing support legs or integrated into elevated platforms using support lugs. Proper installation is essential to maintain structural integrity, align process connections, and ensure safe long-term operation.
To meet specific process requirements, stainless steel mixing tanks may incorporate heating or cooling systems as part of their structural design. Heating can be achieved through electric elements or steam, while cooling is commonly provided by water circulation or refrigerant systems. These thermal control components allow the mixing process to remain consistent when temperature directly affects material properties or processing behavior.
Designed for blending two or more liquids, liquid mixing tanks focus on creating uniform composition through controlled circulation. High stirring speed combined with shallow paddle angles ensures rapid interaction between liquids, which is critical for processes where dissolution or solution uniformity affects product quality.
Solid–liquid tanks are intended for dispersing powders or granules into liquids. Their design emphasizes gentle yet thorough circulation to prevent particle agglomeration, while higher paddle angles and lower speeds optimize suspension uniformity and reduce the risk of settling.
Used for creating stable emulsions, these tanks generate fine dispersion of immiscible phases such as oil and water. High-speed stirring and controlled shear promote uniform droplet formation, which is essential in cosmetic, pharmaceutical, and food applications.
Homogenization tanks or tanks with integrated high shear systems perform intensive dispersion and microstructure refinement. They reduce particle size, improve texture consistency, and stabilize emulsions, supporting processes that require both macro- and microscopic control over material structure.
Reactor tanks combine mixing with chemical or physical reactions. They are engineered for corrosion resistance, sealing, and thermal control, ensuring that reaction kinetics remain stable while maintaining product integrity.
Dispersion tanks focus on breaking down solid particles and distributing them evenly in a liquid medium. They are particularly useful in producing suspensions, gels, and slurries where particle size and uniform distribution are key quality factors.
The simplest form, single-layer tanks are suitable for basic blending tasks without temperature control. They provide straightforward mixing solutions for general-purpose applications.
Double-layer tanks introduce a thermal layer between inner and outer walls, allowing hot or cold media to circulate and maintain material temperature. Jacketed tanks extend this concept, supporting precise thermal regulation, which is critical for viscosity-sensitive or temperature-dependent processes.

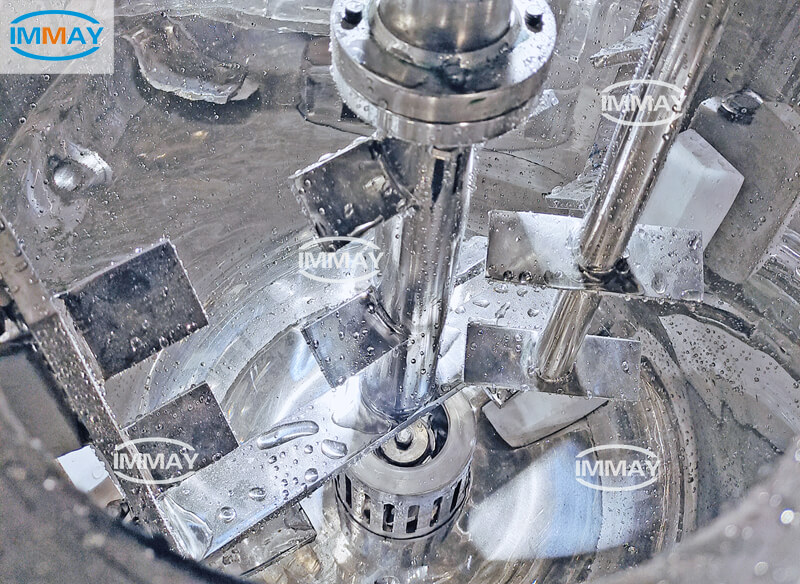

These tanks integrate the agitator directly into the tank body for optimized circulation and shear distribution. They are widely used in chemical, cosmetic, pharmaceutical, and food production, where uniform mixing and process control are required.
Using magnetic drive technology, these tanks achieve contamination-free mixing. They are particularly suited for applications with stringent hygiene standards, such as sterile or pharmaceutical processes.
Equipped with electric heating elements—either jacketed, coiled, or tubular—these tanks provide controlled heating during mixing. They are commonly applied in chemical industries where both temperature and agitation must be precisely regulated.
Equipped with a steam-jacket, these tanks provide efficient and uniform heating during mixing. They are commonly applied in chemical, cosmetic, pharmaceutical, and food industries where rapid and controlled temperature regulation is required to ensure consistent material properties and process stability.
These tanks operate under reduced pressure, allowing for mixing of materials sensitive to oxidation or where volatile components need to be removed. Vacuum operation also enhances the quality of viscous emulsions by minimizing air inclusion.
Mobile mixing tanks equipped with trolleys offer flexible production layouts. They can be moved instantly between workstations, making them suitable for batch production in food, cosmetic, chemical, or pharmaceutical environments.
Selecting the right stainless steel mixing tank requires considering multiple factors that influence both process performance and product quality.
Different products require specific mixing processes to achieve desired quality and consistency. Some formulations require vacuum conditions to minimize air incorporation after mixing, others require precise heating to control viscosity or reaction rates, and high-shear homogenization may be necessary to create stable emulsions or ensure uniform dispersion. Selecting a tank that matches the product’s processing needs ensures reliable performance and consistent results.
The choice of mixing method depends on material properties and processing goals. High shear homogenizing systems are used for viscous materials and emulsions to ensure uniform texture and dispersion. High-speed dispersing systems are suitable for solid–liquid mixing, promoting rapid and consistent powder incorporation. Magnetic or gentle paddle agitation is applied for sensitive formulations where minimal mechanical stress and contamination control are required. Selecting the right method ensures efficient mixing and consistent product quality across different formulations.
The viscosity, density, and chemical properties of materials directly influence the choice and design of a mixing tank. High-viscosity formulations require strong stirring or high-shear systems to achieve uniform blending, while low-viscosity liquids may need less intensive agitation. Corrosive or reactive substances demand high-quality stainless steel with excellent corrosion resistance to ensure durability and maintain material integrity. Understanding these characteristics helps select the most suitable tank configuration, agitation method, and processing parameters for consistent and efficient production.
Tank size should align with production scale and batch volume to ensure efficient processing. Undersized tanks may lead to incomplete mixing or reduced throughput, while oversized tanks can result in wasted energy and resources. Selecting the proper capacity helps maintain consistent process conditions, optimize production efficiency, and support uniform product quality across batches.
In cosmetics, stainless steel mixing tanks are used to produce creams, lotions, emulsions, and serums. Tanks often integrate high shear homogenizing systems to achieve smooth textures and stable emulsions, while temperature-controlled jackets allow for gentle heating or cooling as required. These tanks are essential for products like deep hydration creams, facial serums, and other high-quality skincare formulations.
In the food industry, stainless steel mixing tanks are used to produce a wide range of products such as milkshakes, sauces, caramel, jams, chocolate ganache, and fondant pastes. These tanks ensure that ingredients are thoroughly blended and consistently emulsified, supporting stable texture and taste. High-speed or gentle mixing systems can be selected depending on the product’s viscosity and sensitivity, enabling precise control over consistency and quality.
Stainless steel mixing tanks in pharmaceutical production are applied to prepare ointments, creams, and liquid formulations. Tanks with precise temperature control and high-shear homogenization ensure uniform dispersion of active ingredients and excipients. The equipment supports strict hygiene standards while maintaining consistent batch-to-batch quality, essential for reliable pharmaceutical manufacturing.
In the chemical sector, stainless steel mixing tanks are used for solutions, suspensions, and dispersions where material uniformity and reaction control are crucial. Tanks may include features such as high-speed dispersing systems or vacuum capabilities to handle powders, viscous liquids, or sensitive formulations, ensuring consistent quality and process efficiency.
Stainless steel mixing tanks are more than just processing vessels—they are the backbone of reliable, efficient, and innovative industrial production. From cosmetics and food to pharmaceuticals and chemicals, these tanks empower manufacturers to achieve consistent quality, precise control, and scalable workflows across a wide range of formulations and processes. Their versatility—whether through high shear homogenization, temperature control, vacuum operation, or mobile configurations—enables manufacturers to adapt to evolving production demands and stay competitive in rapidly changing markets.
For manufacturers seeking to optimize their production capabilities and elevate product quality, choosing the right stainless steel mixing tank is a critical step. IMMAY is a professional manufacturer of stainless steel mixing tanks, providing a wide range of high-performance solutions designed to meet diverse industrial needs and support sustainable growth. Contact IMMAY today to explore solutions tailored to your production goals and take your manufacturing efficiency to the next level.
