Author: Site Editor Publish Time: 2025-11-24 Origin: Site
Many buyers new to homogenization and emulsification equipment often find it difficult to distinguish between a high shear homogenizer and a vacuum emulsifying mixer. The two machines share similar terminology, both utilize rotor–stator high-shear technology, and both can produce fine emulsions, which makes the distinction less obvious at first.
Although they seem similar, each machine is engineered for different processing environments and formula characteristics. A high shear homogenizer generates concentrated shear forces in an open mixing system and is commonly applied to powder dispersion, liquid–liquid pre-emulsification, and viscosity reduction steps. A vacuum emulsifying mixer combines rotor–stator homogenization with a frame-type agitator, enclosed mixing, heating and cooling control, and vacuum conditions that support uniform emulsification and efficient deaeration after mixing. This integrated design enables stable processing of lotions, creams, balms, and a wide range of medium- to high-viscosity formulas.
Recognizing these differences helps manufacturers in cosmetics, skincare, personal care, and ointment production match equipment capabilities with formulation needs. Choosing the right system contributes to consistent processing, predictable results across batches, and a setup that aligns with long-term production planning.

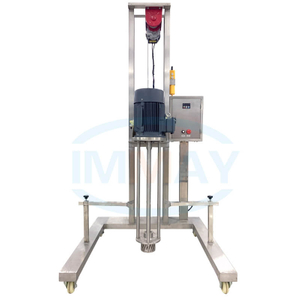

A high shear homogenizer mixer operates using a rotor–stator mechanism that generates intense localized shear.
The rotor spins at high speed, drawing materials into the head and pushing them through narrow gaps at high velocity. This rapid mechanical action breaks droplets and reduces particle size within low viscosity liquids.
Continuous circulation around the rotor–stator head is required for efficient processing, so materials must remain free-flowing.
A typical high shear homogenizer includes：
Rotor–stator homogenizing head — the heart of the system that generates shear forces.
High-speed motor and drive — delivers the required RPM for emulsification and dispersion.
Mounting structure — Liftable Design, allowing the mixer to reach deep into an open tank for high shear homogenization.
These components together produce high-energy mixing ideal for reducing droplet or particle size in fluid systems.
High shear homogenizer mixers perform best in open-tank applications where materials remain flowable and do not require vacuum processing. They are widely used for: Oil–water emulsification in low viscosity systems
These high shear homogenizer mixers are commonly applied in cosmetics, skincare, personal care, and chemical industries during small scale processing.
A vacuum emulsifying mixer integrates high-shear rotor–stator homogenization with a frame-type agitator inside a sealed, vacuum-controlled vessel.
The rotor–stator system generates intense localized shear to reduce droplet size and create a uniform emulsion, while the frame agitator scrapes the vessel walls and ensures bulk circulation, preventing dead zones.
The vacuum environment removes entrapped air after mixing, improving texture and stability.
Heating or cooling can be applied via a jacketed vessel to control formulation temperature throughout the process, making the system suitable for medium- to high-viscosity creams, ointments, and other emulsions.
A typical vacuum emulsifying mixer includes：
Rotor–stator homogenizing head — provides high-shear emulsification.
Frame-type agitator — scrapes tank walls and promotes bulk circulation.
Vacuum system — enables air removal and deaeration after emulsification.
Jacketed vessel — allows heating or cooling for temperature-sensitive formulations.
Control panel — for button or PLC operation, regulating speed and temperature.
These components work together to allow integrated mixing, emulsification, heating/cooling, and deaeration in a single vessel, which is essential for consistent, high-quality emulsions.
Vacuum emulsifying mixers are ideal for applications requiring uniform emulsification, high viscosity handling, and post-mix air removal. They are commonly used for：
Medium- to high-viscosity creams and ointments
Cosmetic lotions and creams requiring smooth texture and uniform droplet size
Integrated heating/cooling emulsions where temperature control is critical
These vacuum emulsifying mixers are widely applied in cosmetics, skincare, personal care, pharmaceutical, and chemical industries during industrial-scale production, ensuring stable, repeatable, and high-quality batches.
High shear homogenizer mixers operate in open-tank applications where materials remain flowable. They do not provide vacuum conditions, wall scraping, or controlled temperature environments.
Vacuum emulsifying mixers function in a sealed vessel with vacuum control, a frame-type agitator, and a jacket for heating or cooling. This enclosed system supports uniform mixing, high-viscosity processing, and post-mix air removal, making it suitable for creams, ointments, and other dense emulsions.
High shear homogenizer mixers are effective with low viscosity liquids, where circulation around the rotor–stator head is unimpeded.
Vacuum emulsifying mixers can handle medium- to high-viscosity formulations because the frame agitator and wall-scraping design maintain motion and prevent dead zones.
High shear homogenizer mixers perform best in open-tank applications where materials remain flowable and do not require vacuum processing. They are primarily used for small scale oil–water emulsification in low-viscosity systems.
Vacuum emulsifying mixers are designed for industrial scale batch processing: heating, melting, emulsifying, homogenizing, and vacuum deaeration, all in a single vessel. This integration ensures high quality final product.
High shear homogenizer mixers, operating in open tanks, are suitable for products that do not require vacuum processing. They perform well in low-viscosity formulations.
Vacuum emulsifying mixers remove trapped air after emulsification under vacuum, reducing air incorporation, improving texture uniformity, and enhancing product appearance.
High shear homogenizer mixers are ideal for low-viscosity liquids and open-tank processing. They are best suited for oil–water emulsification.
These mixers are simple to operate, cost-effective, and efficient for small scale liquid processing in cosmetics, skincare, personal care, and chemical industries, where vacuum processing or high-viscosity handling is not required.
Vacuum emulsifying mixers are designed for medium- to high-viscosity creams, ointments, and lotions that require uniform texture, stable emulsions, and controlled processing conditions.
The integration of high-shear homogenization, frame-type agitation, vacuum deaeration, and temperature control allows for consistent batch quality, smooth texture, and predictable performance.
These mixers are recommended for industrial-scale production or formulations where final product stability and appearance are critical.
When choosing a mixer, production volume and budget are key factors. High shear homogenizers are generally suitable for small-scale with lower investment costs, offering efficiency for material processing.
Vacuum emulsifying mixers, on the other hand, are better suited for larger-scale production or high-quality products where batch consistency, texture, and stability are essential.
Additional considerations include control method (button vs. PLC), installation type (liftable vs. fixed), and available factory space.
Understanding the differences between high shear homogenizer mixers and vacuum emulsifying mixers are essential for selecting the right manufacturing equipment for your product. Each mixer serves a specific role: high shear homogenizers excel in small-scale, low-viscosity, open-tank processing, while vacuum emulsifying mixers handle medium- to high-viscosity formulations with integrated homogenization, vacuum deaeration, and temperature control for consistent, high-quality batches.
Choosing the appropriate mixer ensures efficient processing, high quality results, and a production setup that aligns with both current and future manufacturing needs.
Contact IMMAY today to discuss your specific formulation requirements and receive expert guidance on the most suitable mixing solution for your production line.
