Author: Site Editor Publish Time: 2026-02-24 Origin: Site
Carbomer is a widely used rheology modifier in cosmetic gel and emulsion systems. In water-based formulations, it provides viscosity development, structural support, and controlled flow behavior. Even at low concentrations, it can significantly influence texture, appearance, and stability, making it an essential component in many cosmetic products.
Unlike conventional thickeners that rely mainly on concentration to build viscosity, carbomer functions through a hydration and neutralization-driven structural transformation. When properly dispersed in water and subsequently neutralized, its polymer chains expand and form a three-dimensional network. This structural evolution is what ultimately determines the gel strength, clarity, and consistency of the final product.
Because of this mechanism, carbomer is highly sensitive to mixing conditions. Its performance depends not only on formulation composition, but also on how the powder is introduced, how hydration proceeds, and how the system responds to pH adjustment. In small laboratory batches, these variables may appear manageable. In industrial manufacturing environments, however, larger volumes and mechanical forces introduce additional complexity.
Understanding how carbomer behaves during dispersion and hydration is therefore fundamental before discussing mixing strategies or equipment design. The efficiency of industrial carbomer processing begins with a clear grasp of its structural characteristics and gel formation mechanism.
Efficient carbomer mixing cannot be understood without first examining its molecular structure and hydration behavior. The performance of carbomer in cosmetic manufacturing is not simply a matter of concentration; it is the result of controlled structural transformation within the aqueous phase.
Carbomer is a high–molecular weight, crosslinked polyacrylic acid polymer. Its backbone consists of acrylic acid units connected into long chains, which are further linked together through crosslinking points. These crosslinks prevent the polymer from dissolving like a linear thickener. Instead, the material forms a three-dimensional network when properly hydrated.
In its dry powder form, carbomer particles are tightly coiled and compact. When dispersed into water, the outer surface begins to hydrate first. Water penetrates the particle gradually, allowing the polymer chains to uncoil and expand. However, without adequate dispersion, the outer hydrated layer can trap dry powder inside, forming agglomerates. These partially hydrated particles are difficult to break down once formed and can remain as visible lumps in the final product.
The swelling behavior of carbomer is therefore dependent on uniform wetting. Proper dispersion ensures that each particle is individually surrounded by water, enabling controlled expansion rather than uneven clumping.
Although carbomer begins to hydrate in water, it does not develop significant viscosity until neutralization occurs. In its acidic form, the polymer chains remain relatively coiled because the carboxylic acid groups are not ionized. As a result, electrostatic repulsion between chains is limited, and the system remains low in viscosity.
When a neutralizing agent raises the pH, the carboxylic acid groups become ionized. This ionization introduces electrostatic repulsion along the polymer backbone, forcing the chains to extend and occupy a larger volume. As the chains expand, they interact with neighboring chains and form a continuous gel network throughout the aqueous phase.
This transition from a loosely hydrated dispersion to a fully developed gel can occur rapidly. The viscosity increase after neutralization is often dramatic, which is why pH control is critical in industrial production. Uneven neutralization can lead to localized over-thickening, while insufficient neutralization results in incomplete viscosity development.
The relationship between pH and viscosity is therefore not linear but structural. The gel forms because of molecular expansion, not simply because of increased solids content.
Several process variables influence how effectively carbomer develops its final structure.
pH remains the most critical parameter. Each carbomer grade has an optimal pH range in which maximum viscosity is achieved. Outside this range, the polymer network either does not fully expand or begins to lose structural integrity.
Electrolytes can significantly affect gel strength. Because carbomer relies on electrostatic repulsion for chain expansion, the presence of salts or ionic ingredients can shield these charges. This reduces repulsion forces and may lead to decreased viscosity or structural weakening. Formulations containing active ingredients with ionic character should therefore consider compatibility with carbomer.
Shear intensity also plays a role. Moderate shear is necessary during dispersion to separate particles and promote hydration. However, once the gel network has formed, excessive shear can distort or partially collapse the structure, reducing apparent viscosity. Industrial mixing should therefore balance dispersion energy with structural preservation.
Temperature influences hydration rate and viscosity development. Higher temperatures can accelerate hydration but may also alter rheological behavior depending on formulation composition. Consistent temperature control helps ensure reproducible batch performance.
This structural perspective explains why carbomer mixing is not merely a blending operation. It is a controlled transformation process governed by polymer expansion, ionization, and mechanical interaction. A clear understanding of these mechanisms provides the foundation for designing efficient mixing procedures in cosmetic manufacturing.
Efficient carbomer mixing in industrial-scale cosmetic manufacturing requires careful attention to each stage of the process. Success depends not only on following the correct sequence but also on controlling mechanical energy, liquid dynamics, and pH development.
Before introducing carbomer powder, the water phase should be properly prepared. Ensure that the water is free from large particulates and pre-heated if required by the formulation, as temperature can influence hydration rate. Begin mixing at a moderate rotational speed to create a gentle vortex. This initial agitation is intended to produce a uniform liquid environment without forming a deep central vortex that would draw in excess air.
Minimizing air incorporation at this stage is critical, because once bubbles are trapped during later high-viscosity phases, they are difficult to remove. In industrial vessels, using a low-velocity impeller or a combination of axial and radial flow agitators can help maintain a smooth surface flow and reduce turbulence, setting the foundation for uniform powder dispersion.
Introducing carbomer powder requires precision. Rapid or uneven addition can lead to localized clumping and the formation of partially hydrated particles, commonly known as “fish eyes.” These clumps resist hydration and can compromise the clarity and texture of the final product.
The preferred method is slow, controlled addition, ideally along the side wall of the vessel or directly into the circulating liquid flow rather than pouring into the vortex center. Continuous gentle agitation during powder addition ensures each particle is evenly wetted and prevents accumulation at the bottom. Industrial practice often employs automated feeders to maintain consistent feed rates for large batches.
Once dispersed, the carbomer requires adequate hydration. This stage typically uses low to moderate shear to allow water penetration into each polymer particle. Excessive shear at this stage can trap air or degrade partially formed microstructures.
Hydration continues until the polymer chains are fully swollen and the dispersion reaches uniform consistency. Operators should monitor viscosity development visually or with inline rheometers to ensure that the system is fully hydrated before proceeding to neutralization.
Neutralization is a critical point where viscosity increases sharply. A carefully controlled addition of a neutralizing agent, such as a mild alkali, ensures even pH development throughout the batch. Localized over-alkalinity can lead to overly rapid gelation in some areas, creating inconsistent texture and pockets of excessive thickening.
Neutralization should be performed gradually, with continuous gentle agitation to evenly distribute the base. Monitoring pH at multiple points in the vessel allows operators to confirm uniformity. As the polymer network expands, the system’s viscosity will increase rapidly, requiring careful adjustment of mixing speed to maintain homogeneity without over-shearing the gel structure.
After neutralization, the dispersion reaches near-final viscosity, but minor adjustments may be necessary. Inline or laboratory rheology measurements can guide fine-tuning of pH to achieve the target viscosity. Any subsequent emulsification of oil phases or addition of active ingredients should be performed with shear levels appropriate for the desired product texture, ensuring the structural integrity of the carbomer gel is maintained.
Industrial operators should also confirm uniformity and clarity, checking for residual lumps or undispersed material before proceeding to downstream processing or packaging.
Even with a well-planned process, industrial-scale carbomer mixing can encounter several challenges that affect gel clarity, texture, and consistency. Understanding the root causes of these issues allows manufacturers to implement effective preventive measures and maintain batch-to-batch reproducibility.
Lumps, commonly referred to as “fish eyes,” occur when dry carbomer particles fail to hydrate properly and remain encapsulated within a partially swollen shell. This can happen if powder is added too quickly, concentrated in one area, or exposed to inadequate water flow. Once formed, these agglomerates are resistant to hydration and cannot be fully dispersed by shear, resulting in visible defects in the final product.
Preventing lump formation requires a combination of proper powder addition and controlled dispersion. Introducing the carbomer slowly along the vessel wall or into circulating liquid minimizes localized high concentrations. Maintaining moderate mixing speeds during addition ensures that each particle is immediately surrounded by water, allowing uniform hydration. Automated feeders in industrial settings can further enhance consistency by regulating feed rate and distribution.
Variability in final viscosity is another common problem. Uneven neutralization can cause localized over-thickening or under-thickening, while the presence of salts or ionic ingredients in the formulation can interfere with polymer chain expansion. Electrolytes shield the charges along the carbomer backbone, reducing the electrostatic repulsion that drives gel network formation. As a result, the gel may appear thin in some areas and overly firm in others.
Controlling viscosity consistency involves careful pH monitoring during neutralization and considering electrolyte content in the formulation. Gradual base addition, thorough mixing, and sampling at multiple points in the vessel help ensure uniform polymer activation and a reproducible rheological profile. Adjustments to neutralization rate and mixing speed can mitigate the impact of ionic ingredients without compromising gel structure.
While shear is essential for powder dispersion and initial hydration, excessive shear after the gel network begins to form can be detrimental. High-intensity mixing applied for too long may partially break down the polymer network, causing a decrease in viscosity and structural integrity. This over-shearing can lead to a softer or uneven gel that does not meet the desired product specifications.
To avoid over-shearing, operators should adjust impeller speed and duration according to the system’s viscosity development. Many industrial vessels use variable-speed drives or multi-stage agitators, allowing low-shear circulation during final gel formation while maintaining homogeneity. Monitoring viscosity in real time or using inline rheometers can provide early feedback to prevent structural damage.
Air incorporation is a common challenge in carbomer gel production, especially during high-viscosity stages. Entrapped air can compromise gel transparency and uniformity, and in extreme cases, affect downstream emulsification or filling operations. Bubbles are often introduced when powder is added too quickly, when liquid vortices form on the surface, or when excessive agitation traps air within the polymer network.
Mitigation strategies include careful control of mixing speeds to reduce surface vortices, slow and uniform powder addition, and the use of vacuum-assisted mixing systems. A vacuum pump can remove entrained air during hydration, improving clarity and preventing bubble-related defects.
Proper cosmetic mixing equipment selection is critical for achieving consistent carbomer performance in industrial cosmetic manufacturing. While the process steps—dispersion, hydration, and neutralization—define the workflow, the mechanical systems used to execute these steps determine how efficiently and reproducibly they can be carried out across a variety of water-based cosmetic formulations, including gels, creams, and serums.
High shear mixing is essential during the powder dispersion stage. At this point, polymer particles should be fully wetted and separated to avoid lumps or uneven hydration. High-intensity shear accelerates initial swelling and ensures uniform dispersion across the batch.
However, once the polymer network begins to form in water-based systems, excessive shear can disrupt the structure, reducing viscosity and stability. Industrial operators should therefore carefully manage shear levels, applying high shear only during early dispersion and transitioning to gentler mixing during later stages to preserve product texture.
Air entrapment during mixing can compromise clarity, uniformity, and texture in formulations such as gels, creams, or serums. Vacuum-assisted mixing allows trapped air to escape during dispersion and hydration, improving visual appearance and structural consistency.
The vacuum environment also enhances hydration by reducing air pockets around polymer particles, ensuring more uniform swelling and viscosity development. For premium cosmetic products, this results in smoother texture and a more appealing final product.
Agitator design plays a crucial role in achieving uniform hydration and preventing material from sticking to vessel walls. A combination of frame wall-scraping agitators for bulk circulation and ensures consistent mixing at moderate shear levels across different product types.
For more challenging water-based formulations, a bottom-mounted high shear homogenizer can be integrated to break down stubborn clumps and accelerate polymer swelling. This combination provides precise shear control, balancing effective dispersion with structural preservation.

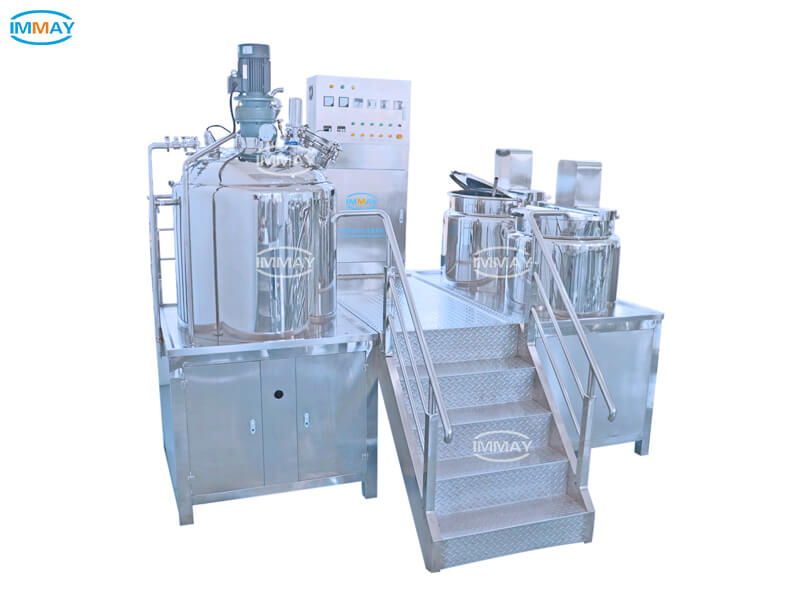

IMMAY’s vacuum emulsifying mixing machines are designed for these requirements. They integrate high shear homogenizer, frame wall-scraping agitators, and vacuum pump, allowing efficient particle wetting without over-shearing. The vacuum system minimizes air entrapment, ensuring reproducible viscosity, clarity, and texture across gels, creams, and serums at industrial scale.
Carbomer plays a pivotal role in modern cosmetic manufacturing, providing structure, viscosity, and stability across a wide range of water-based formulations, from gels and creams to serums. Its unique behavior—hydration, neutralization, and network formation—requires careful attention to both formulation design and industrial processing conditions. Achieving consistent performance at scale is not simply a matter of mixing; it demands a strategic approach that balances polymer science, process engineering, and equipment capability.
Industrial-scale production introduces challenges such as controlling shear, ensuring uniform pH, minimizing air entrapment, and maintaining consistent texture across batches. Understanding these factors at a systems level allows manufacturers to optimize efficiency, product quality, and reproducibility, turning formulation potential into reliable commercial output.
IMMAY’s vacuum emulsifying mixing machines are specifically engineered to address these challenges. By integrating precise shear control, wall-scraping agitation, and vacuum-assisted hydration, they enable cosmetic manufacturers to consistently produce high-quality carbomer-containing products at industrial scale. Partnering with IMMAY helps cosmetic producers translate technical understanding into scalable, reliable manufacturing, ensuring that every batch meets the desired standards of texture, clarity, and performance.
