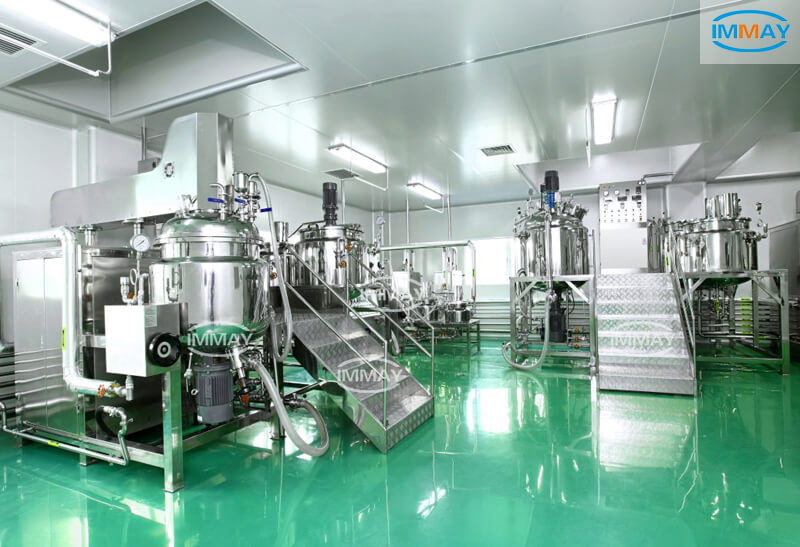

Vacuum Emulsifying Mixer Machine for Industrial Sunscreen Cream Manufacturing

Sunscreen creams are complex cosmetic emulsion products that combine oils, water, thickeners, and UV filters. Their performance depends on consistent texture, uniform dispersion of functional ingredients, and predictable SPF across batches. Ensuring these qualities in industrial production requires careful management of multiple factors.

Maintaining stability and consistency presents several challenges. Manufacturers must control mixing, homogenization, temperature, viscosity differences, and the removal of entrapped air. Each of these elements can influence emulsion density, texture, and overall product quality if not properly managed.

Vacuum emulsifying mixers help address these challenges by integrating mixing, homogenizing, heating, cooling, and post-emulsification vacuum degassing in a single system. This enables uniform distribution of UV filter powders and oils, enhances emulsion stability, and supports reliable batch-to-batch performance in sunscreen cream manufacturing.

1. Why Vacuum Emulsifying Mixers Are Used for Sunscreen Cream Manufacturing

1.1 Emulsification requirements of sunscreen cream formulations

Sunscreen creams are complex formulations that typically combine oil phases, water phases, thickeners, and active UV filters. Maintaining a stable and uniform formulation is important for product performance, as inconsistencies can affect texture, sensory feel, and SPF reliability.

At the microscopic level, the size and distribution of oil droplets influence emulsion stability and the smoothness of the cream. Fine emulsions with well-controlled droplet sizes contribute to a consistent texture and help maintain consistent SPF performance. In addition, the even dispersion of functional ingredients such as titanium dioxide (TiO₂) or zinc oxide (ZnO) is achieved through a frame-type agitator. This equipment effectively distributes the powders throughout the emulsion and helps maintain uniform formulation quality.

1.2 How vacuum degassing supports sunscreen formulation consistency

After the emulsification process is completed, vacuum degassing is applied to remove residual air incorporated during mixing. This post-emulsification vacuum step helps increase emulsion density and improve texture uniformity. By eliminating trapped air, manufacturers can achieve more consistent SPF performance and maintain uniform quality across production batches.

1.3 High Shear Homogenization System Support for Sunscreen Cream

High shear homogenization is a critical function of a vacuum emulsifying mixer, responsible for thoroughly combining the oil and water phases to form a stable emulsion. By applying strong shear forces, the system reduces droplet size, producing a fine, uniform mixture that supports consistent texture and reliable SPF performance.

In addition to emulsifying the oil and water phases, the high shear homogenizer helps distribute UV filter powders such as titanium dioxide (TiO₂) and zinc oxide (ZnO) evenly throughout the formulation. This promotes a more uniform formulation and enhances overall product quality.

2. Key Process Functions of a Vacuum Emulsifying Mixing Machine

2.1 Heating and Cooling via Jacket Control

The jacketed vessel allows precise temperature management during the mixing and emulsification process. By circulating hot or cold fluids through the jacket, manufacturers can control the temperature of both the oil and water phases, ensuring proper melting of waxes, dissolution of thickeners, and consistent emulsification. Accurate thermal control is essential for maintaining the viscosity of the formulation and supporting a uniform texture throughout the production batch.

2.2 Agitator and Scraper Mixing Mechanism

The integrated agitator and scraper system continuously stirs the contents of the tank while preventing material from sticking to the walls. This mechanism ensures uniform blending of all components, including oils, water, and thickeners, and helps maintain a smooth emulsion. The scraper also facilitates heat transfer by keeping the vessel walls clean, which is particularly important when processing high-viscosity sunscreen formulations.

2.3 High Shear Homogenizer

The high shear homogenizer is responsible for reducing droplet size and producing a fine, uniform emulsion. It effectively combines the oil and water phases and helps promote the even dispersion of functional ingredients such as titanium dioxide (TiO₂) or zinc oxide (ZnO) throughout the sunscreen cream. This process improves texture consistency and contributes to more reliable SPF performance, as the uniform dispersion of functional ingredients supports even sun protection across the formulation.

2.4 Vacuum System for Post-Emulsification Degassing

After emulsification is complete, the vacuum system is used to remove residual air that may have been incorporated during mixing. This post-emulsification degassing helps increase emulsion density and enhances texture uniformity. By eliminating trapped air, manufacturers can achieve more consistent formulation quality and maintain a smooth, professional-grade sunscreen cream.

3. Production Workflow for Industrial Sunscreen Cream Manufacturing

3.1 Preparing Phase Materials

The production process begins with the preparation of all phase materials. Oil-phase components, water-phase components, and powders are added according to the proper sequence. The oil phase is prepared with oils, waxes, and other lipophilic ingredients, while the water phase is adjusted with thickeners and other hydrophilic components. Proper sequencing of ingredient addition lays the foundation for efficient emulsification and uniform formulation quality.

3.2 Heating and Melting Control

Both the oil and water phases are brought to the appropriate temperature to ensure complete melting of waxes, dissolution of thickeners, and proper mixing of all ingredients. Jacketed heating and cooling systems allow precise temperature management to avoid overheating or degradation of sensitive components. Accurate thermal control helps maintain the target viscosity and facilitates the formation of a smooth, homogeneous emulsion during subsequent homogenization.

3.3 High Shear Homogenization for Emulsion Formation

High shear homogenization is applied to thoroughly combine the oil and water phases, producing a fine and uniform emulsion. During this step, High shear homogenization also promotes the even dispersion of functional ingredients such as titanium dioxide (TiO₂) and zinc oxide (ZnO), helping maintain consistent texture and supporting reliable SPF performance. The intense shear forces reduce droplet size and promote uniform distribution of both the liquid phases and dispersed powders, which is critical for achieving a stable and high-quality sunscreen cream.

3.4 Cooling, Viscosity Development, and Post-Emulsification Vacuum Degassing

After high shear homogenization, the emulsion is gradually cooled to the target temperature while the viscosity develops to the desired level. At this stage, vacuum degassing is applied to remove any residual air incorporated during mixing. This post-emulsification vacuum step increases emulsion density, improves texture uniformity, and helps maintain consistent formulation quality across production batches.

3.5 Discharge and Transfer for Downstream Filling

Once the desired viscosity and uniformity are achieved, the sunscreen cream is discharged from the mixing tank and transferred to the downstream filling and packaging equipment.

4. Industrial Mixer Selection Factors for Sunscreen Cream Manufacturers

4.1 Batch Capacity and Production Scale

Selecting a mixer that matches the required batch size is critical for production efficiency and consistency. Proper alignment between mixer capacity and production scale helps reduce processing time, maintain consistent emulsion quality, and optimize overall manufacturing throughput.

4.2 Formulation Requirements

Different sunscreen formulations have varying viscosities, oil-to-water ratios, and functional ingredient loadings, these factors directly influence the type of mixer. Understanding the formulation’s physical and chemical properties ensures the selected mixer can achieve a stable emulsion with consistent texture and SPF performance.

4.3 Facility Design Considerations

The layout, available floor space, and ceiling height of the facility determine whether the mixer can be installed and operated efficiently. If the mixer dimensions do not match the available space, it may not fit in the production area or be positioned properly for workflow integration.

5. Conclusion

Vacuum emulsifying mixers play a key role in supporting efficient and reliable industrial sunscreen cream production. They help manufacturers optimize production processes, and achieve stable, high performance sunscreen creams.

Choosing the right Industrial sunscreen cream mixing machine is an important decision for any sunscreen cream manufacturer, impacting production efficiency, consistency, and overall operational reliability.
