When To Use An Explosion-Proof Stainless Steel Mixing Tank in Industrial Production

In many industrial production processes, mixing is not only a blending operation, but also a stage where material properties, temperature changes, and volatile components interact simultaneously. When formulations contain flammable solvents, the process environment may involve the formation of vapor that requires careful control under specific operating conditions.

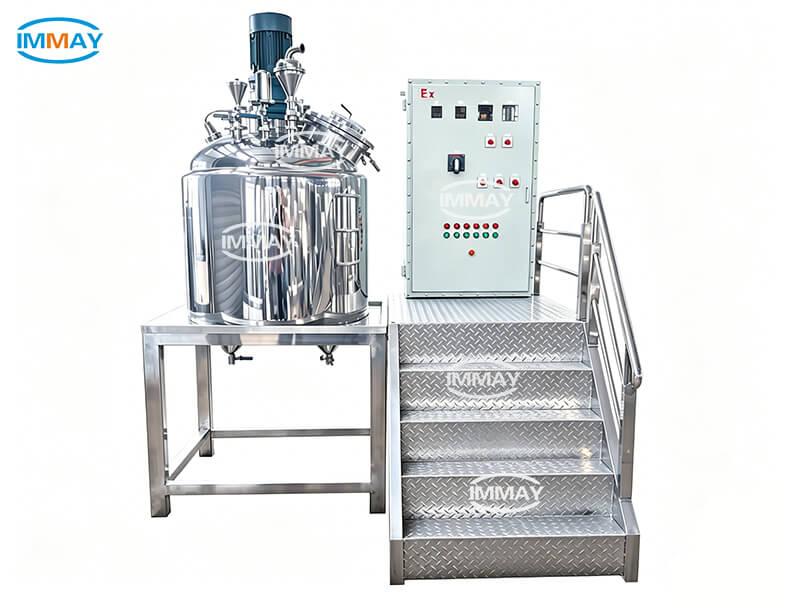

Explosion-proof stainless steel mixing tanks are designed to support safe and stable processing in such environments. Understanding when and why this type of equipment is required helps manufacturers make more appropriate decisions in system selection and production planning.

Mixing Process Factors That Lead to Explosion Risk

Explosion risk in mixing processes is associated with the formation of a flammable vapor-air mixture when volatile solvents are present in the formulation. The risk arises from process conditions that allow vapor generation and ignition, rather than from the mechanical mixing operation itself.

Presence of flammable volatile substances in the formulation

When the formulation contains low flash-point volatile solvents such as ethanol or similar organic compounds, vapor is generated during processing. The evaporation rate may increase under elevated temperature conditions, leading to a higher concentration of flammable vapor in the process environment.

If the concentration of vapor in air reaches the flammable range, a combustible vapor-air mixture may be formed.

Exposure to an ignition source

An explosion risk occurs only when the flammable vapor-air mixture is exposed to an ignition source such as electrical sparks, static discharge, or high-temperature surfaces.

Without an ignition source, the vapor-air mixture does not lead to ignition or explosion.

How to Choose an Explosion-Proof Stainless Steel Mixing Tank

When selecting an explosion-proof stainless steel mixing tank, the overall design must focus on controlling both ignition sources and flammable vapor exposure. This is achieved through electrical protection systems and a properly sealed process environment.

Explosion-proof electrical control system

The electrical control cabinet must be designed with explosion-proof protection to ensure that internal electrical faults, such as sparks or arcs, cannot ignite flammable vapor-air mixtures in the surrounding environment. This is a core requirement in any system handling volatile solvents.

Explosion-proof electrical components and motor system

All electrical components connected to the mixing system, including the motor, wiring, and control elements, must follow explosion-proof design standards. The motor is specifically designed to operate safely in environments where flammable vapors may be present, preventing it from becoming an ignition source during operation.

Sealed tank structure for vapor control

The mixing tank must be designed with a sealed structure to reduce the release of flammable vapors generated during processing. Since volatile solvents can evaporate during mixing or heating, proper sealing helps maintain process containment and reduces the risk of forming a flammable vapor-air mixture in the surrounding environment.

Operational Safety Precautions for Explosion-Proof Mixing Tanks

Using an explosion-proof stainless steel mixing tank alone is not sufficient to eliminate all explosion risks. Safe operation also depends on proper workshop conditions and correct handling procedures.

Explosion risk control should be understood as a combination of equipment safety design and operational safety management.

Adequate ventilation in the workshop

The production environment should maintain effective ventilation to prevent the accumulation of flammable vapors generated during processing. Proper air circulation helps reduce vapor concentration and lowers the possibility of forming a flammable vapor-air mixture.

Strict prohibition of open flames and ignition sources

Open flames, smoking, and any equipment that may generate sparks or uncontrolled heat must be strictly prohibited within the production area. Eliminating external ignition sources is a critical part of maintaining safe operating conditions.

Use of anti-static protective clothing

Operators should wear anti-static clothing and follow electrostatic discharge control practices during production. This helps reduce the risk of static electricity acting as an ignition source in environments where flammable vapors may be present.

Conclusion

Explosion risk control in industrial mixing processes is built on the interaction between volatile formulations, vapor behavior, and ignition conditions. When flammable solvents are present, safe production depends on managing process conditions, equipment design, and workplace practices as a unified system.

Explosion-proof stainless steel mixing tanks serve as a key part of this system by supporting controlled operation in environments with flammable vapors. Combined with proper ventilation, electrostatic protection, and other disciplined operating procedures, they contribute to maintaining stable and controlled industrial production conditions.
