Author: Site Editor Publish Time: 2026-09-21 Origin: Site
Cosmetic production is a continuous process in which formulation development, processing, storage, filling and packing work together as one production system. Each stage has its own equipment and operating requirements, while the product must move through these stages in a controlled production flow.
As production moves from product processing to filling, there is often a need for an intermediate stage that can receive the finished product from the processing equipment and hold it until the filling process is ready. This is where a stainless steel storage tank becomes an important part of the production line, connecting product processing with the next stage of production.
Cosmetic production is made up of several connected stages, from formulation development and product processing to storage and filling. Each stage has its own production requirements and equipment. Cosmetic mixing machines, such as stainless steel mixing tanks with agitator and vacuum emulsifying mixers, are used to prepare and process cosmetic products, while filling machines dispense the processed product into its containers.
Once product processing is complete, the product needs to move from the mixing equipment to the filling system. This creates a need for an intermediate stage where the processed product can be received and held before filling.
Processing and filling are separate stages of cosmetic production, with different equipment performing different tasks. Cosmetic mixing machines handle product preparation and processing. The cosmetic filling machine then dispenses the processed product into bottles, tubes, jars, or other containers.
The processed product therefore needs a connection between the processing equipment and the filling system. A stainless steel storage tank provides this connection and gives the processed product a suitable place to stay before it enters the filling process.
After processing, the finished product needs an intermediate vessel to receive and hold it before filling. Stainless steel storage tanks provide this intermediate stage between the processing equipment and the filling machine.

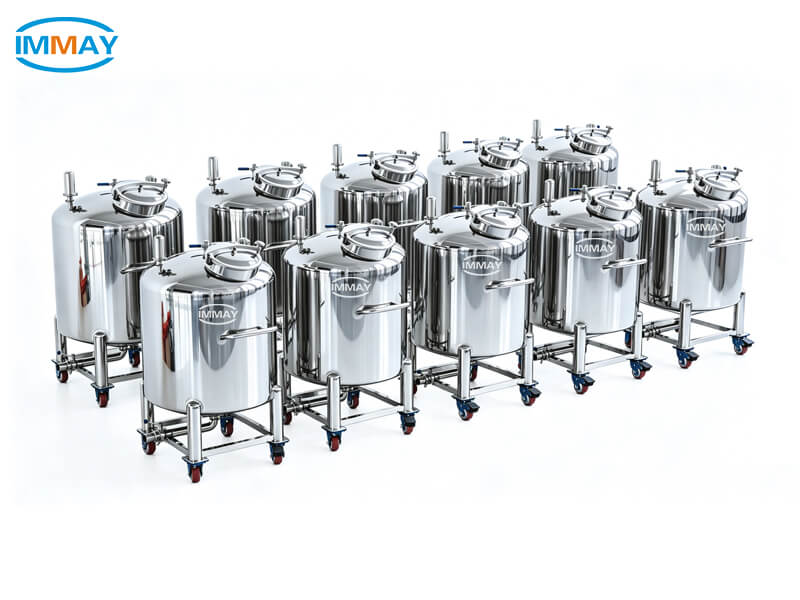

A stainless steel storage tank receives the processed product from the mixing equipment and holds it until it is ready to be supplied to the filling system. The capacity and configuration of stainless steel storage tanks can be selected according to the product, batch size, and production arrangement.
Stainless steel storage tanks form an intermediate link between product processing and filling:
Processing → Stainless Steel Storage → Filling
This connection creates a clear product flow from the equipment that prepares the product to the equipment that fills it into containers. Stainless steel storage tanks become an important part of the production line when product processing and filling are handled by separate equipment.
A stainless steel storage tank is positioned between the product processing equipment and the filling machine in a cosmetic production line. Once the product has been processed, it is transferred into the storage tank and held there until the filling system is ready to run. The product then moves from the storage tank to the filling machine for container filling.
The production process begins with product preparation and mixing. Depending on the formula and processing requirements, manufacturers can use stainless steel mixing tanks with agitator or vacuum emulsifying mixers.
Stainless steel mixing tanks with agitator are commonly used for liquid cosmetic products. Vacuum emulsifying mixers are used for products that require oil and water phase processing and high-shear emulsification.
After the required mixing or emulsification process is completed, the processed product is ready to enter the storage stage.
The processed product is transferred from the mixing equipment to the stainless steel storage tank through a pump.
Cosmetic Mixing Machine → Pump → Stainless Steel Storage Tank
The stainless steel storage tank is moved into position beside the cosmetic mixing machine. A hose connects the mixing machine and the storage tank, while the pump draws the processed product from the mixing tank and transfers it into the storage tank.
The storage tank holds the processed product until it is needed for filling. Its position can be arranged according to the factory layout and production schedule.
When the filling process begins, the processed product is supplied from the stainless steel storage tank to the filling machine through a Liquid and Cream Feeding Machine.
Stainless Steel Storage Tank → Liquid and Cream Feeding Machine → Cosmetic Filling Machine
The Liquid and Cream Feeding Machine takes the product from the storage tank and supplies it to the filling machine. The cosmetic filling machine then dispenses the product into bottles, tubes, jars, or other containers according to the selected filling format.
The complete production flow can be viewed as:
Processing → Stainless Steel Storage → Filling
At the equipment level, the product moves through the following sequence:
Cosmetic Mixing Machine → Pump → Stainless Steel Storage Tank → Liquid and Cream Feeding Machine → Cosmetic Filling Machine
This production flow connects product processing, intermediate storage, and filling in a clear sequence. The cosmetic mixing equipment handles product processing, the stainless steel storage tank receives and holds the processed product, and the feeding machine supplies the product to the filling machine for container filling.
The right stainless steel storage tank depends on the product, production volume, and equipment connected to the tank. These factors determine the tank capacity, internal configuration, and connection arrangement required for the production line.
The product determines the basic configuration of the stainless steel storage tank. Viscosity, flow characteristics, temperature requirements, and storage conditions all need to be considered before choosing the tank.
Product viscosity and flow characteristics affect how the product moves through the tank and out through the outlet. Some products also need agitation while they are being held before filling. Depending on the product and process, the tank can be configured with an agitator, heating, cooling, or insulation.
The storage conditions should also match the product. For products that need temperature control during storage, the tank can be connected to a heating or cooling system to maintain the required processing condition before filling.
Batch size provides a starting point for determining the required tank capacity. The working capacity refers to the amount of product the tank is designed to hold during normal production, while the total capacity includes the additional space above the working volume.
Production volume also affects the number of storage tanks required. Smaller production setups may use one storage tank, while larger production operations may require multiple tanks to handle different products, batches, or production schedules.
The tank capacity should also match the production schedule. The storage tank needs to receive the processed product at the required pace and supply the filling system according to the production schedule, so that storage capacity does not become a factor that interrupts the continuous flow between processing and filling.
The tank size should also fit the available factory space and access conditions, including door height and width.
The storage tank also needs to match the feeding equipment used before the filling machine. In this production flow, the connection is:
Stainless Steel Storage Tank → Liquid and Cream Feeding Machine → Cosmetic Filling Machine
The outlet of the storage tank needs to be suitable for the Liquid and Cream Feeding Machine, including the connection arrangement and outlet position. These details should be considered together with the factory layout and the position of the filling machine.
A well-matched connection allows the processed product to move from the storage tank into the feeding system and then to the filling machine as part of the planned production flow.
A cosmetic production line is a connected production system. Product processing, intermediate storage, and filling work together as different stages of the same production flow. Stainless steel storage tanks form the intermediate link between product processing and filling, connecting the equipment used to prepare the product with the equipment used to fill it.
The selection of a stainless steel storage tank should therefore follow the actual production process. Product characteristics, batch requirements, production schedule, and equipment arrangement all contribute to how the storage stage should be planned. The stainless steel storage tank becomes part of the overall cosmetic production system, with its role determined by how the complete line operates.
