Why High Shear Mixers Are Essential for Industrial Emulsion Systems

In industrial manufacturing, emulsions are widely used across personal care, food, and chemical applications. Although many of these products appear straightforward, achieving consistent performance at production scale presents complex technical challenges.

Emulsion quality is influenced by both formulation design and process conditions. While ingredient selection and emulsifier systems are fundamental, many stability, viscosity, and appearance issues only become apparent when a formulation is subjected to industrial mixing environments. Differences in shear intensity, batch volume, residence time, and thermal behavior can significantly alter how a formulation performs compared to laboratory or small-batch trials.

As production scales up, conventional mixing approaches often struggle to deliver the mechanical energy required for controlled emulsification. Larger volumes, higher viscosities, and longer processing cycles amplify small process deviations, turning marginal emulsions into unstable systems. Under these conditions, mixing is no longer a simple blending step but a critical structural stage that defines emulsion behavior.

This article explains why high shear mixers are essential for industrial emulsion systems. By examining emulsion physics, scale-up effects, and the functional role of shear, it clarifies how properly engineered high shear mixing enables stable, repeatable emulsification in industrial production.

Understanding Industrial Emulsion Systems

What Defines an Industrial Emulsion System

An industrial emulsion system is not defined simply by the presence of oil and water. What makes it industrial is the requirement to form, stabilize, and reproduce an emulsion at scale, under controlled but demanding process conditions.

In industrial production, emulsions should withstand:

• Large batch volumes

• Extended processing and holding times

• Downstream operations such as transfer, filling, and storage

These constraints mean that an emulsion is treated not as a temporary mixture, but as a designed system with predictable structure and behavior.

Oil–Water Coexistence and Phase Instability

Oil and water coexist in an emulsion only under continuous mechanical and interfacial control. From a physical standpoint, separating into two phases is the system’s natural tendency.

Without sufficient energy input:

• Dispersed oil droplets collide and coalesce

• Interfacial area decreases to reduce system energy

• Visible phase separation becomes unavoidable

Industrial emulsification is therefore a process of forcing a metastable structure into existence and maintaining it long enough for production and use.

Droplet Size as a Functional Process Parameter

In industrial emulsions, droplet size is not a theoretical descriptor—it directly determines product performance.

Smaller and more uniform droplets contribute to:

• Consistent viscosity and flow behavior

• Improved visual uniformity

• Predictable interaction with emulsifiers and stabilizers

If droplet size distribution is uncontrolled, the emulsion may appear acceptable immediately after mixing, but its properties will drift during holding or storage. This makes droplet size a process-controlled parameter, not a formulation afterthought.

How Industrial Emulsions Differ from Laboratory or Small-Batch Systems

Laboratory emulsions often rely on:

• Short mixing times

• Small volumes

• High relative energy input per unit volume

These conditions mask many issues that appear at industrial scale.

In contrast, industrial emulsions should be produced with:

• Limited total process time

• Consistent results across repeated batches

• Stable behavior during long production cycles

What works in a beaker does not automatically translate to a production vessel.

Batch Volume Effects on Emulsification Behavior

As batch volume increases, the energy delivered by mixing equipment is distributed over a much larger mass.

This leads to:

• Lower effective shear in the bulk of the vessel

• Uneven droplet formation across the batch

• Increased risk of localized over-processing or under-processing

Industrial emulsification is therefore not a linear scale-up problem. The same formulation behaves differently when volume increases by an order of magnitude.

Time–Shear–Temperature Coupling in Industrial Mixing

In industrial emulsification, time, shear, and temperature are tightly linked.

• Higher viscosity requires higher shear to achieve the same droplet breakup

• Increased shear generates heat, which alters viscosity and interfacial tension

• Longer mixing times cannot compensate for insufficient shear without thermal side effects

This coupling means emulsification must be controlled as a dynamic process, not a single adjustable parameter.

Why Emulsions Are Inherently Unstable Without Sufficient Mechanical Energy

An emulsion remains stable only as long as its internal structure resists separation forces such as gravity, coalescence, and creaming.

Without sufficient mechanical energy during formation:

• Droplets remain too large to resist separation

• Emulsifiers cannot fully occupy newly formed interfaces

• Structural weaknesses are built into the system from the start

In industrial production, instability is rarely a storage problem—it is usually a mixing-stage problem that reveals itself later.

Why Conventional Mixing Is Not Enough for Emulsion Formation

In industrial emulsion production, conventional low-shear mixers are often insufficient for creating stable, high-performance emulsions. This limitation arises from the physical nature of multiphase systems, not just equipment choice. Below, we break down the key reasons.

Limitations of Low-Shear Agitation in Multiphase Systems

Traditional mixers, such as paddle, anchor, or impeller agitators, are primarily designed for bulk liquid circulation. While effective for general blending, they generate very low localized shear, which is crucial for droplet breakup in emulsions.

In multiphase systems:

• Oil and water phases naturally tend to separate due to differences in density and interfacial tension.

• Low-shear agitation cannot provide sufficient energy to break droplets into the desired size range.

• The result is large droplets, uneven distribution, and incomplete emulsification.

In short, low-shear mixing moves the bulk liquid but cannot effectively “engineer” the interface between phases—a fundamental requirement in industrial emulsification.

Why Increasing Mixing Time Does Not Compensate for Insufficient Shear

It may seem intuitive to extend mixing time when using low-shear mixers. However:

• Droplet breakup depends on achieving a critical shear threshold; without reaching this threshold, droplets will remain too large.

• Prolonged mixing under low shear does not increase droplet disruption but instead may introduce unwanted thermal effects due to friction and viscous dissipation.

• Extended mixing time also increases energy consumption without improving emulsion quality.

Thus, time alone cannot substitute for shear intensity in high-viscosity or complex formulations.

Common Production Symptoms Caused by Inadequate Shear

When emulsions are formed with insufficient shear, manufacturers often encounter predictable production issues:

• Phase Separation After Holding

• Large, unstable droplets coalesce over time.

• Oil and water layers begin to separate even after initial mixing.

• The emulsion loses its intended stability, making downstream processing difficult.

Inconsistent Viscosity Between Batches

• Without uniform droplet distribution, viscosity varies from batch to batch.

• This inconsistency impacts filling, pumping, and product performance.

• Even minor variations can compromise product quality in industrial-scale production.

Poor Dispersion of Emulsifiers or Functional Additives

• Emulsifiers may fail to fully occupy the oil–water interface, reducing emulsion stability.

• Functional additives (e.g., thickeners, actives) may not distribute evenly, leading to local concentration variations.

• The final product may exhibit defects such as uneven texture, appearance, or performance.

The Role of Shear in Emulsion Formation and Stability

Shear plays a central role in industrial emulsion production. Unlike low-shear agitation, controlled high shear directly influences droplet size, distribution, and long-term stability. Understanding how shear interacts with the formulation is key to achieving reproducible, high-quality emulsions.

How Shear Forces Reduce Droplet Size and Promote Interfacial Contact

Shear forces generated by high-shear mixers physically break up the dispersed phase into smaller droplets. This has two critical effects:

• Reduced droplet size: Smaller droplets increase the total interfacial area, which improves the stability of the emulsion.

• Enhanced interfacial contact: Emulsifiers and stabilizers can more effectively adsorb at the droplet interface, forming a protective layer that prevents coalescence.

Without sufficient shear, droplets remain too large, and the interfacial area is insufficient for emulsifiers to stabilize the system, leading to phase separation or batch inconsistency.

Relationship Between Shear Rate and Emulsion Uniformity

The shear rate—the speed at which adjacent layers of fluid move relative to each other—directly determines droplet size distribution:

• Higher shear rates lead to finer and more uniform droplets.

• Lower shear rates result in broad droplet size distributions, causing instability over time.

In industrial production, maintaining a consistent shear rate across the entire batch is crucial. Variations in shear can lead to localized inconsistencies, even if the bulk mixture appears homogeneous immediately after processing.

Why Emulsifier Performance Depends on Sufficient Shear Energy

Emulsifiers rely on sufficient shear energy to:

• Rapidly adsorb at newly formed droplet surfaces.

• Reduce interfacial tension effectively.

• Form a robust interfacial film that prevents coalescence during holding and downstream processing.

If shear energy is inadequate, emulsifiers cannot fully occupy the interface. This limits their effectiveness, and even the correct formulation can fail to produce a stable emulsion.

The Concept of Critical Shear Threshold in Industrial Emulsification

Industrial emulsions exhibit a critical shear threshold, which is the minimum shear required to achieve the desired droplet size and distribution. Key points:

• Below this threshold, droplet breakup is incomplete regardless of mixing time.

• Exceeding the threshold ensures sufficient energy input for uniform emulsification.

• The critical shear threshold depends on multiple factors, including viscosity, volume fraction of dispersed phase, temperature, and formulation components.

Understanding and applying this concept is essential for scaling up from laboratory or pilot batches to full industrial production without sacrificing product stability or quality.

What Makes High Shear Mixers Different

High shear mixers are engineered specifically to overcome the limitations of conventional mixing in industrial emulsions. Unlike standard agitators, their design focuses on generating controlled, localized shear that can uniformly disperse and stabilize complex multiphase systems.

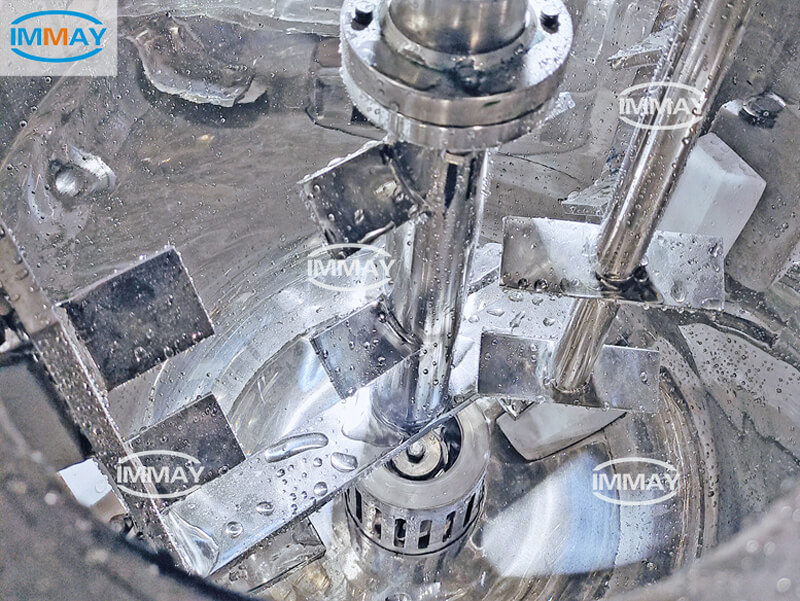

• Rotor–Stator Design and Localized Energy Density

• The defining feature of most high shear mixers is the rotor–stator mechanism:

• Rotor: Rotates at high speed, accelerating fluid and generating strong shear at the interface.

• Stator: Provides narrow gaps and fixed geometry that create intense localized turbulence.

This combination produces high energy density zones within the liquid, which:

• Break up droplets efficiently

• Promote rapid emulsifier adsorption at interfaces

• Achieve uniform droplet size across the batch

By concentrating energy where it is needed, high shear mixers can handle viscous or complex emulsions that low-shear systems cannot.

Controlled Shear Generation Versus Bulk Turbulence

Unlike conventional agitators, which generate random bulk turbulence:

• High shear mixers create controlled and predictable shear fields

• Shear intensity can be adjusted by rotor speed, gap size, or rotor geometry

• This allows precise control over droplet size and distribution

Controlled shear is essential for repeatable industrial emulsions, as it ensures that each portion of the batch experiences consistent mechanical forces.

Repeatability of Shear Conditions Across Batches

One of the main challenges in industrial emulsification is batch-to-batch consistency. High shear mixers provide:

• Consistent shear effects throughout the batch

• Minimal variation in droplet size distribution

• Reliable emulsion stability across repeated production runs

This repeatability is a major advantage over conventional low-shear mixers, which often produce localized zones of under-processed material.

Why High Shear Mixers Shorten Process Time Without Compromising Stability

Because high shear mixers deliver energy directly where it is needed:

• Droplet breakup occurs rapidly

• Emulsifiers can immediately stabilize new interfaces

• Total mixing time is reduced while achieving the same or better stability

In effect, high shear mixers simultaneously improve efficiency and emulsion quality, allowing industrial manufacturers to scale up production without sacrificing product consistency.

Why High Shear Mixing Becomes Essential at Industrial Scale

Scaling up from laboratory or pilot-scale emulsions to full industrial production introduces unique challenges that make high shear mixing critical. Many issues that are negligible at small scale become significant when batch volumes increase, and low-shear systems cannot reliably compensate.

Scale-Up Challenges in Emulsion Production

Industrial emulsification is not a simple linear expansion of laboratory protocols:

• Energy input per unit volume decreases as batch size increases if equipment is unchanged.

• Mixing dynamics are affected by vessel geometry, liquid depth, and the ratio of dispersed to continuous phase.

• Small inconsistencies in mixing can be amplified, leading to non-uniform emulsions and instability.

Without a high shear system designed for scale, producing a reproducible emulsion becomes difficult, even with optimized formulations.

Droplet Size Consistency

Droplet size is a primary determinant of emulsion stability:

• In larger batches, low-shear regions can produce oversized droplets.

• Variability in droplet size across the batch leads to uneven viscosity and phase separation.

• High shear mixers deliver concentrated mechanical energy in localized zones, ensuring consistent droplet size distribution throughout the volume.

Maintaining this consistency is critical to meeting industrial product specifications.

Heat Accumulation and Viscosity Increase

Industrial-scale emulsions are often high-viscosity systems:

• Shear generates heat, which can locally reduce viscosity, affecting droplet breakup.

• Large batches are more prone to temperature gradients, which can destabilize the emulsion if uncontrolled.

• High shear mixers allow rapid emulsification, shortening process time and minimizing the impact of heat accumulation on product properties.

Why Shear Demand Increases with Batch Size and Formulation Complexity

As batch volume and formulation complexity grow:

• The energy required to achieve a target droplet size rises.

• Multi-phase or high-viscosity formulations resist droplet breakup more strongly.

High shear mixers meet this demand efficiently, providing adequate mechanical energy regardless of batch scale or formulation challenges.

Risk of Relying on Marginal Shear Capacity in Continuous Production

In continuous industrial production:

• Operating near the limits of shear capacity increases the risk of unstable emulsions.

• Even small variations in viscosity, feed rate, or temperature can produce batch inconsistency.

• High shear mixers offer a robust safety margin, ensuring stable emulsions even under fluctuating process conditions.

Key Industrial Products That Depend on High Shear Emulsification

High shear mixing is essential across multiple industrial sectors where stable, uniform emulsions are required. While end products vary, they share fundamental process requirements that make high shear indispensable.

Creams, Lotions, and Personal Care Emulsions

Personal care emulsions demand:

• Consistent droplet size for smooth texture and stable viscosity

• Uniform dispersion of active ingredients and emulsifiers

• Resistance to phase separation during production, storage, and transport

High shear mixing ensures these characteristics by delivering controlled energy to the dispersed phase, maintaining stability in large batch volumes.

Food Emulsions with Oil–Water Phases

Food products containing oil–water emulsions require:

• Fine, homogeneous droplet distribution to achieve desired texture and mouthfeel

• Stable emulsification under variable process conditions, such as temperature changes and high viscosities

• Uniform incorporation of functional ingredients like thickeners or flavor compounds

Controlled high shear ensures repeatable emulsification, which is critical for product consistency and quality in industrial-scale food production.

Chemical and Functional Fluid Systems

In chemical and functional formulations:

• Multiple phases often resist mixing due to high viscosity or density differences

• Droplet size consistency directly impacts functional performance, such as coating, lubrication, or reactive dispersion

• Precise shear control is necessary to achieve reproducible batch-to-batch performance

High shear mixers provide the localized mechanical energy required to meet these rigorous process demands.

Shared Process Requirements Across Industries

Despite differences in application, industrial emulsions share common process challenges:

• Droplet size control: Essential for stability, viscosity, and performance

• Efficient energy utilization: Minimizing process time while achieving target emulsification

• Uniform dispersion of additives: Emulsifiers, thickeners, or functional ingredients must be evenly distributed

• Scalability: Laboratory formulations must translate reliably to industrial batch or continuous production

These shared requirements make high shear mixers the preferred solution whenever precise emulsification is critical.

Key Process Parameters When Using High Shear Mixers

High shear mixing is a powerful tool, but its effectiveness depends on careful control of several critical process parameters. Understanding and managing these factors ensures consistent emulsion quality, repeatable production, and efficient operation.

Shear Rate Versus Mixing Speed

Shear rate is the primary parameter influencing droplet breakup and emulsion uniformity:

• Rotor speed directly affects local shear intensity in rotor–stator zones.

• Higher speeds generate smaller droplets and finer dispersions, but excessive shear may produce unwanted heat.

• The relationship between mixing speed and shear is nonlinear in viscous systems; doubling rotor speed does not necessarily double shear at the droplet interface.

Optimizing rotor speed requires balancing droplet size requirements with thermal management and formulation stability.

Residence Time and Energy Input

The total energy imparted to the emulsion is a function of residence time in the high shear zone and mechanical energy input:

• Sufficient energy must be delivered to achieve the critical shear threshold for droplet breakup.

• Short residence times at high shear can achieve the same emulsification effect as longer times at moderate shear, improving process efficiency.

• Over-processing or insufficient energy can compromise droplet uniformity, viscosity, and stability.

Proper control of energy input ensures repeatable emulsification across batches.

Temperature Control During High Shear Mixing

High shear generates localized heating due to viscous dissipation:

• Temperature affects viscosity, droplet breakup, and interfacial properties.

• Viscosity reduction from heat can temporarily improve shear transmission but may also destabilize sensitive formulations.

• Active water cooling is often required for temperature-sensitive systems to maintain process consistency.

Temperature management is therefore a critical companion parameter to shear and residence time.

Integration with Frame Agitators in Viscous Systems

In highly viscous or multi-phase emulsions:

• High shear mixers are often combined with frame agitators to promote bulk circulation.

• This integration ensures that all portions of the batch are exposed to sufficient shear and prevents dead zones.

• The combination of localized high shear and global mixing improves both droplet uniformity and energy efficiency in viscous systems.

Choosing the Right High Shear Mixer for Industrial Emulsion Systems

Selecting an appropriate high shear mixer is a critical step in industrial emulsion production. The right choice depends not only on batch volume but also on the physical and chemical characteristics of the formulation. Proper matching ensures efficient emulsification, reproducible droplet size, and long-term stability.

Batch Volume Considerations

Batch size directly influences mixer selection and process design:

• Small to medium batches: Laboratory or pilot-scale mixers may suffice, but rotor–stator geometry and rotor speed must still deliver sufficient shear for the target droplet size.

• Large industrial batches: Require high-capacity mixers capable of maintaining consistent shear throughout the entire volume.

Matching mixer size and power to batch volume ensures stable and repeatable emulsification.

Formulation Characteristics

The physical properties of the emulsion dictate the shear requirements:

• Viscosity: Higher viscosity formulations require stronger localized shear and may benefit from combined high shear and frame agitation.

• Phase fraction: Formulations with a high dispersed phase fraction need more energy to achieve uniform droplet breakup.

• Sensitivity of ingredients: Heat-sensitive or shear-sensitive components require controlled shear and temperature management to avoid destabilization.

Understanding these characteristics allows selection of a mixer that provides sufficient mechanical energy without compromising product quality.

Conclusion

High shear mixing is not merely an optional feature in industrial emulsion production—it is a process requirement. Emulsion stability, texture, and performance are established during mixing, not fixed afterward.

Properly engineered high shear mixers provide the controlled, localized energy required to achieve consistent droplet size, uniform distribution, and reproducible properties across batches. They are essential for scalable, repeatable industrial production.

IMMAY is a leading manufacturer of high shear mixing solutions, offering equipment designed to meet the demands of complex industrial emulsions. With IMMAY’s high shear mixers for emulsions, manufacturers can achieve reliable, efficient, and high-quality emulsification processes every time.

Contact IMMAY today to learn how our high shear mixing solutions can optimize your industrial emulsion production.
