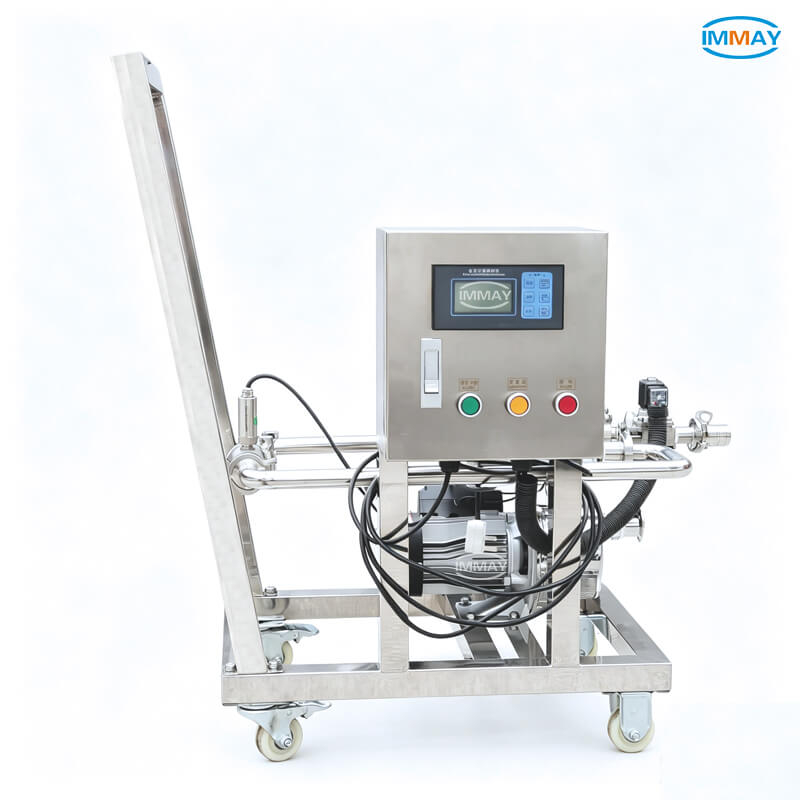

Automatic Liquid Dosing System for Industrial Tanks

The Automatic Liquid Dosing System for Industrial Tanks is designed to transfer a preset volume of liquid automatically between industrial tanks. The system combines a transfer pump, flow meter, and control technology to achieve accurate liquid dosing without continuous operator monitoring.

Operators simply enter the required volume through the touchscreen interface. Once the process starts, the pump transfers liquid from the source tank while the flow meter continuously measures the transferred volume. When the preset target is reached, the system automatically stops the pump.

Why Use an Automatic Liquid Dosing System?

Compared with manual liquid addition, an automatic dosing system offers several operational advantages.

• Consistent liquid addition between batches

• Reduced operator involvement

• Improved production efficiency

• Repeatable dosing results

• Flexible integration with different tanks

• Easier process standardization

The system is particularly useful when production requires the same liquid volume to be added repeatedly throughout the manufacturing process.

Main Components of the Automatic Liquid Dosing System

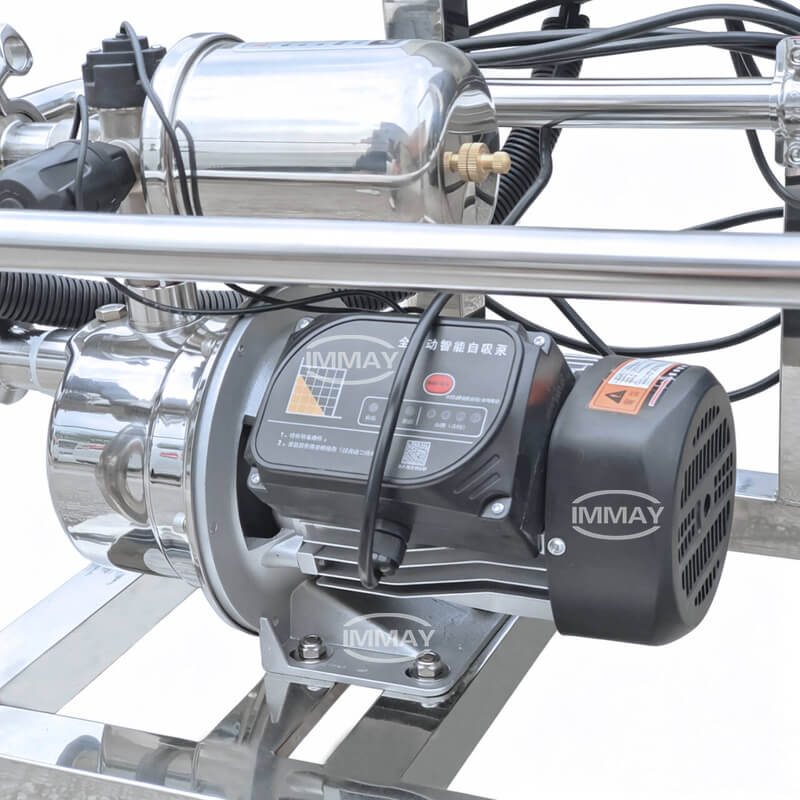

Transfer Pump

Provides liquid movement between tanks.

Pump type can be selected according to liquid characteristics and production requirements.

Flow Meter

Measures liquid volume during transfer and provides feedback to the control system.

Control System

Processes flow signals and automatically controls pump operation.

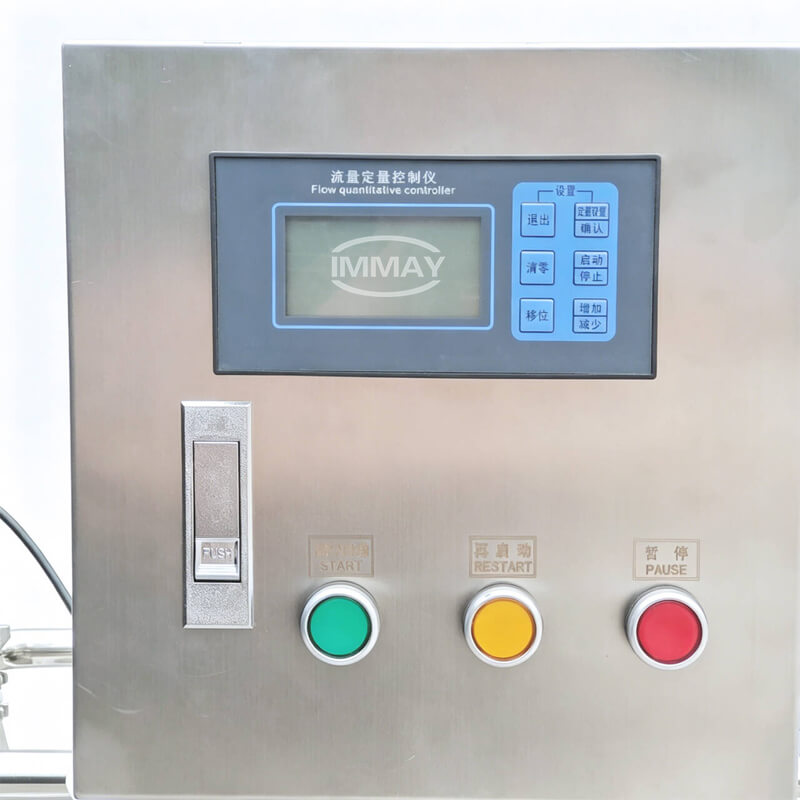

Touchscreen

Allows operators to enter dosing volumes and monitor operating conditions.

Stainless Steel Frame

Provides structural support and mobility for industrial use.

How the System Works

The dosing process is straightforward and designed for daily industrial operation.

Step 1: Set the Target Volume

The operator enters the required liquid volume through the touchscreen control panel.

Common setting range is:

• 50 - 3000 liters

Other volume range can be customized.

Step 2: Start Liquid Transfer

The pump transfers liquid from the source tank to the destination tank.

Step 3: Real-Time Flow Measurement

The flow meter continuously monitors the amount of liquid passing through the pipeline.

The control system compares the measured volume with the preset target value.

Step 4: Automatic Stop

When the programmed volume is reached, the control system automatically stops the pump.

This helps maintain consistent liquid addition between production batches.

Main Features of This System

Automatic Volume Dosing

The system automatically transfers the required liquid volume according to the programmed setting.

Flow Meter Controlled Operation

Real-time flow monitoring allows the system to control dosing volumes during operation.

Touchscreen Control Interface

Operators can easily set dosing parameters and monitor system status.

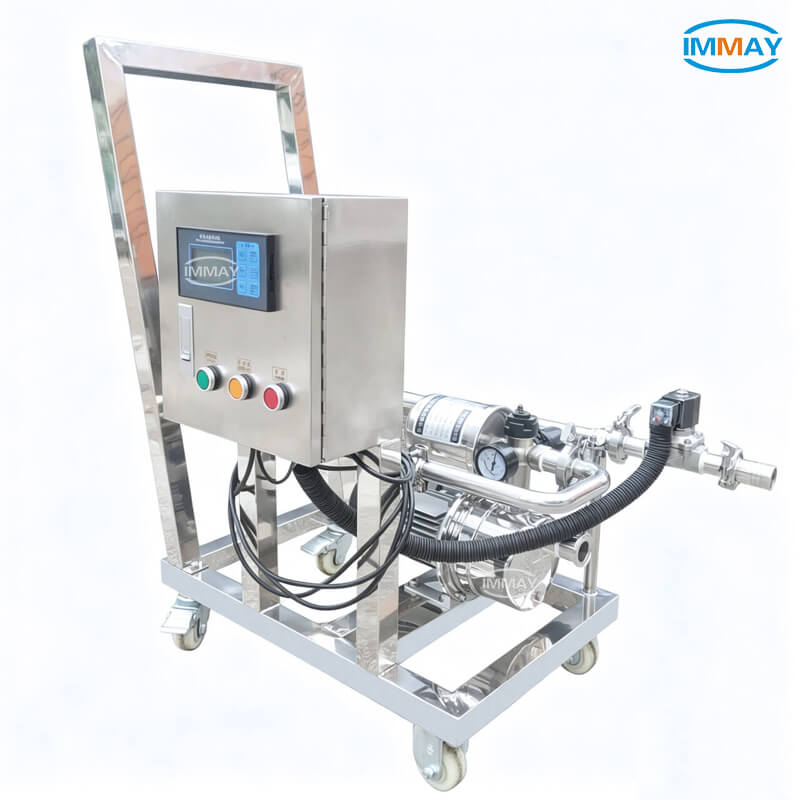

Mobile Design

The equipment can be moved between different production areas and connected to multiple tanks when required.

Flexible Tank Integration

The system can be connected to various industrial tank configurations without major modifications.

Stainless Steel Construction

The equipment frame is manufactured from stainless steel suitable for industrial production environments.

Compatible Liquids for This System

Main liquids include:

• Pure water and process water

• Beverages

Not suitable for:

• Liquids containing solid particles or fibers

Main Details of the Automatic Liquid Dosing System
