Mobile Liquid Filtration System

1. What is a Mobile Liquid Filtration System?

The Mobile liquid filtration system is an integrated equipment designed for the fine filtration and clarification of various cosmetic, food, and chemical liquids.

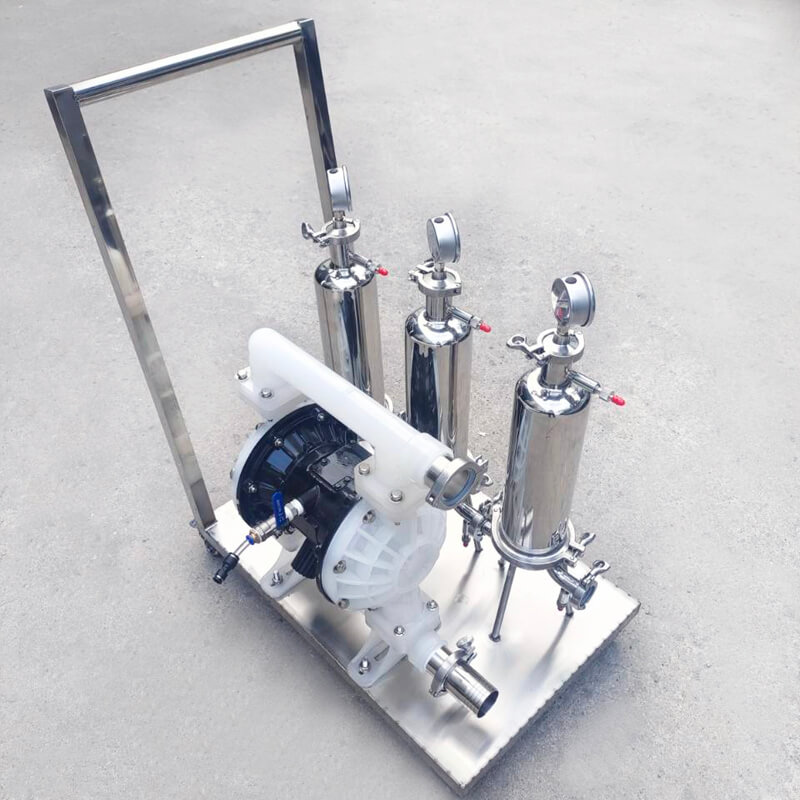

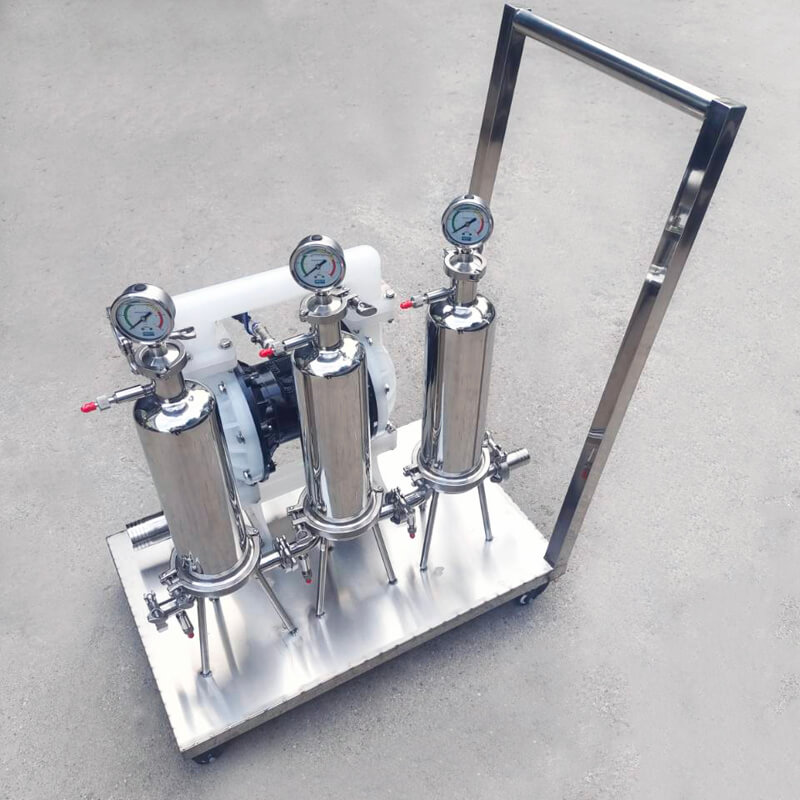

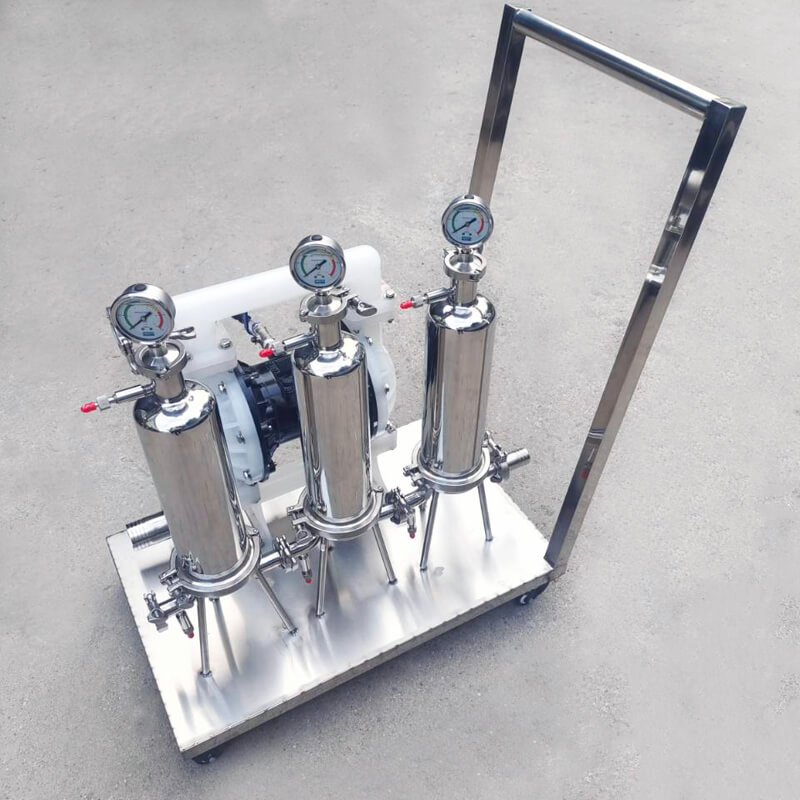

It consists of a pneumatic diaphragm pump, a precision filter housing with pleated microporous filter cartridge, and a stainless steel mobile trolley.

The system delivers stable, safe, and high-efficiency filtration performance, ensuring that the final liquid is crystal-clear, pure, and ready for filling or packaging.

This filtration system is ideal for processing perfume, essential oils, floral waters, toners, makeup removers, serums, and other low-viscosity liquids that require precise filtration.

2.  Structure of a Mobile Liquid Filtration Unit

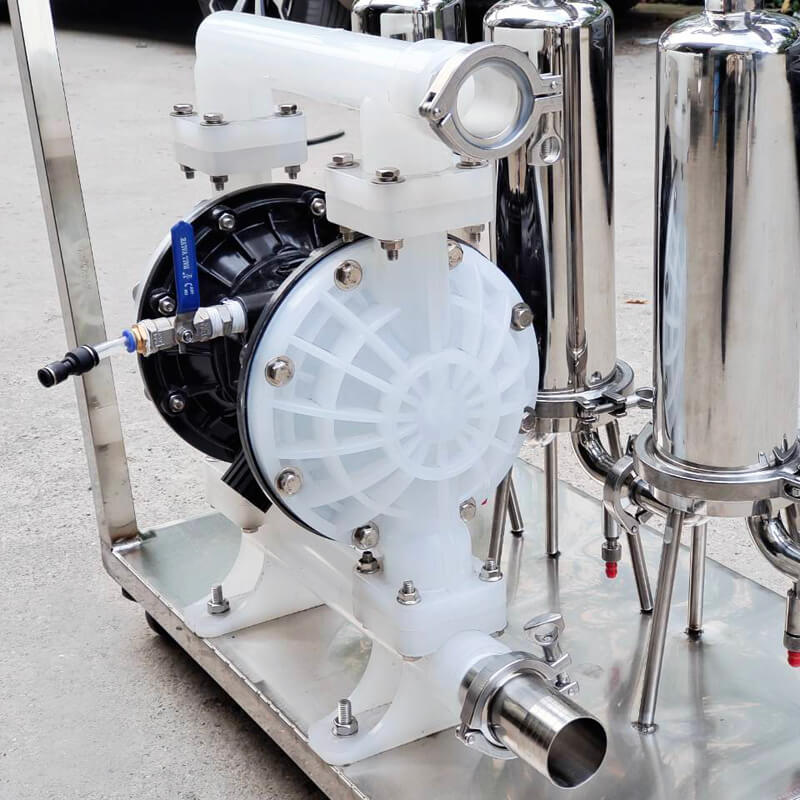

2.1 The Pneumatic Diaphragm Pump Provides Safe and Efficient Liquid Transfer

The pneumatic diaphragm pump works by using compressed air to push flexible diaphragms back and forth, which draws liquid in and pushes it out through the filter. This air-powered mechanism provides smooth, consistent flow without electricity.

Key advantages

• Stable output flow with adjustable air pressure control.

• Compatible with a wide range of liquid products.

• No electrical parts, providing enhanced safety for liquid production in cosmetic, food, and chemical industries.

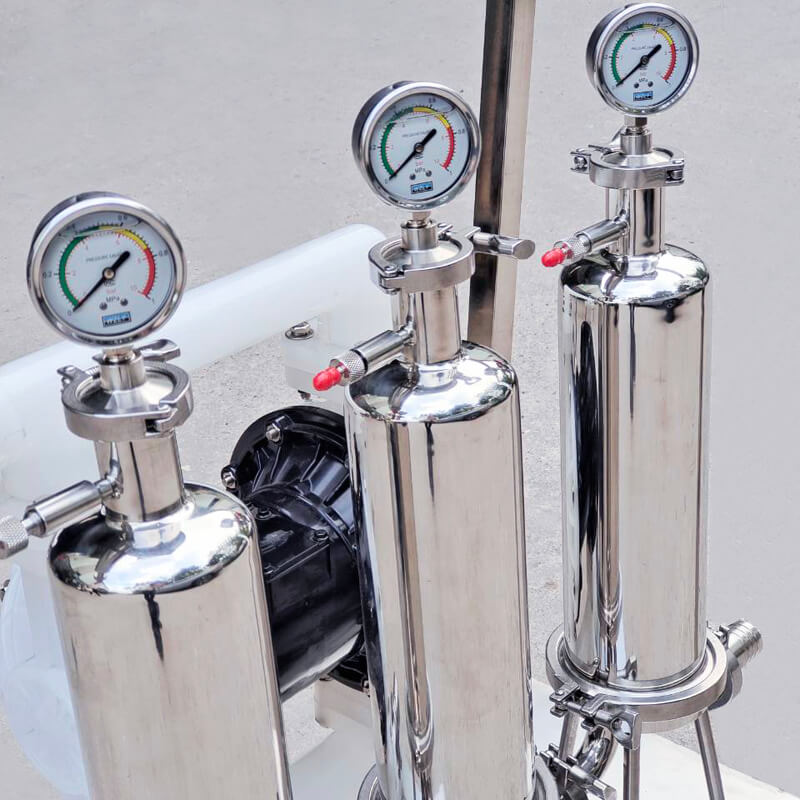

2.2 The Precision Filter Housing Ensures Accurate and Reliable Filtration

The precision filter housing is equipped with pleated microporous filter cartridges, providing a large surface area and high filtration accuracy.

Main features

• Filtration precision from 0.2μm to 10μm, customizable for different products.

• Constructed from high quality stainless steel for corrosion resistance.

• Sanitary quick-clamp design for easy disassembly and cleaning.

• Available with single-stage or multi-stage filter cartridges to meet various filtration precision and process requirements across different applications.

2.3 The Stainless Steel Mobile Trolley Supports Flexible Operation

The entire system is mounted on a stainless steel trolley, allowing operators to move it freely between production areas.

Design benefits

• Lockable casters provide stability during operation.

• Compact structure suitable for laboratory, pilot, or production lines.

• Convenient layout for easy operation and maintenance.

• Stainless steel surface ensures hygienic operation and easy cleaning.

3. Working Principle of a Mobile Liquid Filtration Unit

The pneumatic diaphragm pump transfers liquid from the storage tank or mixing vessel through the pleated microporous filter cartridge.

As the liquid flows through the filter, fine particles, suspended solids, and colloidal impurities are effectively captured, resulting in a clear and stable product.

Because the system uses a pneumatic diaphragm pump, it moves liquids gently and steadily. This helps maintain the quality of the product, whether it is a cosmetic liquid, food liquid, or fine chemical solution

4. Technical Specifications of a Mobile Liquid Filtration Unit

5. Details of a Mobile Liquid Filtration System
