Author: Site Editor Publish Time: 2021-12-02 Origin: Site
Shampoo has become part of everyday life for millions of people around the world. From basic cleansing products to formulations designed for different hair types and personal-care preferences, shampoo has developed into a broad and steadily growing category in the cosmetics market. For manufacturers, this creates room for products aimed at different markets, price points, and consumer needs.
Turning that market opportunity into commercial production requires a production process that can keep pace with demand. As output grows, the way ingredients are prepared, mixed, held, transferred, filled, and packaged becomes increasingly important to the operation of the factory.
So where should the planning of a shampoo production line begin? The answer starts with understanding how the product moves through the manufacturing process.
Shampoo production follows a series of connected stages, beginning with the preparation of process water and ingredients and ending with the packaging of the finished product. The exact process varies with the formulation, but the overall production flow follows a similar sequence:
Water Preparation → Mixing → Product Holding → Filling → Capping → Labeling → Packing
Water is an important part of many shampoo formulations and is prepared according to the requirements of the product. An industrial RO water treatment system can provide the process water used during shampoo production.
The prepared water and other ingredients are combined according to the formulation. The mixing process brings the ingredients together and can include dissolving, blending, heating, or cooling depending on the product requirements.
Once mixing is completed, the shampoo can be transferred to a stainless steel storage tank before filling. The storage stage provides a connection between product preparation and packaging, while the transfer system moves the product between the relevant stages of the line.
The finished shampoo then enters the packaging stage. It is filled into the selected containers and continues through capping, labeling, and packing to become a finished packaged product.
Filling → Capping → Labeling → Packing
Before selecting manufacturing equipment for a shampoo production line, the product characteristics, required output, and packaging format need to be defined first. These requirements provide the basis for determining the processing equipment and the overall line configuration.
The shampoo formula determines how the product needs to be processed. Viscosity, ingredients, mixing requirements, heating or cooling requirements, and foaming characteristics can all affect the way the product is prepared and handled during production.
The relationship can be summarized as:
Formula → Processing Requirements → Equipment Configuration
Batch size provides the basis for determining the working volume of the shampoo processing vessel. Overall production capacity, however, also depends on how long each production cycle takes and how the different stages of the line work together.
Processing cycle time, the number of batches completed within a production period, storage capacity, filling speed, and coordination between processing and packaging all contribute to the actual production output.
The key question is therefore how much product needs to be produced and how the complete production cycle can support that output.
The packaging format needs to be defined before selecting the filling and packaging equipment. Bottle format, bottle size, filling volume, cap type, and labeling format all influence the configuration of the downstream packaging section.
These requirements provide the basis for selecting the appropriate filling, capping, labeling, and packing equipment.
Once the formula, production requirements, and packaging format have been defined, the equipment can be selected according to the role of each stage in the manufacturing process. A shampoo production line usually connects water treatment, mixing, product holding, transfer, filling, capping, labeling, and packing into one production flow.
Water is an important component of many shampoo formulations, making water preparation an important starting point in the production line. An industrial RO water treatment system processes the incoming water before it enters the shampoo manufacturing process.
The system uses reverse osmosis to reduce dissolved salts and other unwanted substances in the incoming water. The treated water is then supplied to the production area for use in shampoo preparation.
The required RO system capacity depends on the water demand of the production process. This includes the amount of water required for each batch and the production schedule. A water storage arrangement can also be included when the production process requires treated water to be available between treatment and manufacturing.

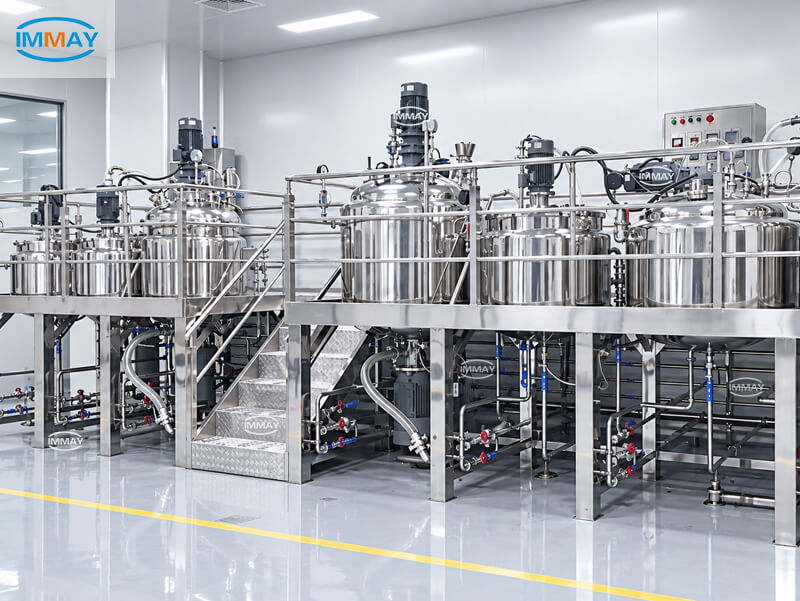

The stainless steel mixing tank is the main processing vessel where the shampoo formula is prepared. Water and other ingredients are introduced according to the formulation and mixed until the required product condition is reached.
The tank configuration should correspond to the characteristics of the shampoo and the required batch size.
Working volume determines the amount of product that can be processed in each batch. The tank is selected according to the required working volume, with additional vessel space considered for the actual operating conditions.
Agitator configuration determines how the product circulates and mixes inside the tank. Different shampoo formulations can require different agitator arrangements according to viscosity, ingredient characteristics, and mixing behavior.
Mixing requirements depend on the formulation. Some shampoos mainly require blending of liquid ingredients, while others involve ingredients that need additional time or specific mixing conditions to dissolve and disperse throughout the batch.
Heating and cooling can be incorporated when temperature control is part of the manufacturing process. Heating can support the preparation of certain ingredients, while cooling can bring the shampoo to the appropriate temperature before it moves to the next stage.
The mixing tank therefore provides the main processing environment where the shampoo formula is converted into a finished bulk product.
After mixing, the finished shampoo is transferred to a stainless steel storage tank for temporary holding before filling.
The storage tank provides a holding stage between bulk production and packaging. This allows the mixing process and filling process to operate according to their respective production cycles and gives the production line a buffer between these two stages.
Storage capacity should correspond to the batch size, production schedule, and filling requirements. For larger production lines, the storage arrangement can also accommodate product from multiple batches according to the production plan.
The storage tank is connected to the product transfer system so that the shampoo can move from the mixing stage into storage and later from storage toward the filling section.
The product transfer system is used to move the finished shampoo from the mixing stage to the storage stage, and then from storage to the filling machine.
After mixing is completed, the stainless steel storage tank is moved close to the stainless steel mixing tank. A hose is connected between the two tanks, and a pump draws the shampoo from the mixing tank into the storage tank.
This mobile transfer arrangement allows the storage tank to be positioned close to the mixing tank when the product needs to be transferred.
The pump configuration is selected according to the characteristics of the shampoo and the required transfer flow. Product viscosity and the required transfer rate are important considerations when selecting the pump.
After the shampoo enters the storage tank, a vertical feeding machine transfers the product upward from the storage tank into the filling machine hopper. The hopper then supplies the filling system during the filling operation.
The complete transfer route is:
Stainless Steel Mixing Tank → Pump → Stainless Steel Storage Tank → Vertical Feeding Machine → Filling Machine Hopper
This arrangement connects product processing, temporary storage, and filling while allowing the storage tank to be moved according to the production arrangement.
Once the shampoo reaches the filling machine hopper, it enters the filling stage. The filling configuration depends on the product viscosity, filling volume, container format, and required production capacity.
The filling system and number of filling nozzles are selected according to the required filling output and the characteristics of the product. Container handling is also considered because bottles need to be positioned correctly before the shampoo enters each container.
After filling, the containers move to the capping stage. The capping equipment is selected according to the cap type and bottle design so that the filled containers can continue through the packaging line.
Filling and capping therefore form the main product-packaging connection: the filling system controls how the shampoo enters the container, while the capping system completes the bottle after filling.
After filling and capping, the bottles move to the labeling and packing stages.
Labeling equipment is selected according to the bottle shape, label format, and labeling method. Different container shapes can require different labeling arrangements, particularly when the label needs to be positioned on a specific surface of the bottle.
The packing stage prepares the labeled bottles for storage and transportation. Depending on the final packaging format, this can include carton packing, and other downstream packaging operations.
The labeling and packing equipment should correspond to the final product format and the required production output, allowing the packaged shampoo to move from the filling section into the finished-product handling stage.
Selecting the right equipment is only one part of setting up a shampoo production line. The equipment also needs to be arranged and coordinated according to the production sequence, so that each stage can support the next stage at the required rate.
The production flow should follow the actual manufacturing sequence:
RO Water Treatment → Mixing → Storage → Transfer → Filling → Capping → Labeling → Packing
At this stage, the focus shifts from individual equipment to the relationship between different production stages. The output of one stage becomes the input of the next, so the production schedule needs to account for how these stages work together.
Processing and packaging can operate on different cycles. Mixing is generally completed in batches, while filling and packaging continue according to their own operating rates. Storage between these stages provides room to coordinate the two sides of the production line and organize production according to the planned schedule.
Capacity matching is also important when building the complete flow. The processing section, storage section, filling section, and downstream packaging equipment should have capacities that work with the intended production output. This helps the production line maintain a consistent flow from bulk preparation through finished-product packaging.
The final production flow should therefore be planned as one connected system, with product movement, processing sequence, equipment capacity, and production timing considered together.
Once the production flow has been established, the equipment needs to be arranged according to the available factory space and the movement of products through production. The layout should follow the actual production sequence while leaving sufficient space for equipment operation and material movement.
The processing area is where the shampoo is prepared before filling. It can include the industrial RO water treatment system, stainless steel mixing tank, and stainless steel storage tank.
The storage tank serves as a temporary holding point for finished shampoo after mixing. It can remain within the processing area until the filling section is ready, after which the tank is moved to the filling area for product supply.
The arrangement of the processing equipment should take into account the working space around the mixing tank, the position of the storage tank, and the movement required between the processing and filling areas.
The filling section normally brings filling, capping, and labeling together as a continuous packaging sequence. After the shampoo is filled into bottles, the bottles move through capping and labeling before entering the next packaging stage.
These machines should be arranged according to the actual container flow, with enough space for bottle movement and routine operation. The location of this area should also allow the storage tank to be moved from the processing area when finished shampoo is ready for filling.
After labeling, the products can enter a separate packing area for processes such as carton packing or case packing.
The packing area should provide enough space for the packaging equipment, packaging materials, and movement of finished products. Its position should also connect naturally with the labeling section so that labeled products can move into final packing without unnecessary handling.
The overall layout should follow the movement of the product from processing to filling, labeling, and final packing while fitting the available factory space.
A shampoo production line is usually built around the production requirements at the time of investment, while future changes in output can also be considered during the initial planning stage.
As production volume increases, the factory may need to handle more batches, increase storage capacity, raise filling output, or add processing and packaging equipment. These changes can affect the available production space as well as the way different stages of the line are arranged.
For this reason, future production needs can be considered when planning the initial line configuration. The scope of future expansion depends on the manufacturer's development plans and investment budget. Where practical, some space and layout flexibility can be reserved for additional equipment or higher production capacity later.
This approach allows the initial production line to match current requirements while leaving room for future adjustments as production develops.
Setting up a shampoo production line begins with a clear understanding of the product and its manufacturing process. The formula and production requirements shape the equipment configuration, while the product flow, production capacity, and factory conditions determine how the equipment comes together in the production area.
When these elements are considered as one system, each stage of production has a clear role and connects naturally with the next. This creates a production line that can support the manufacturer's current output while providing a practical foundation for future development.
Ultimately, a shampoo production line brings together the product, manufacturing process, production capacity, and equipment in one complete production system.
