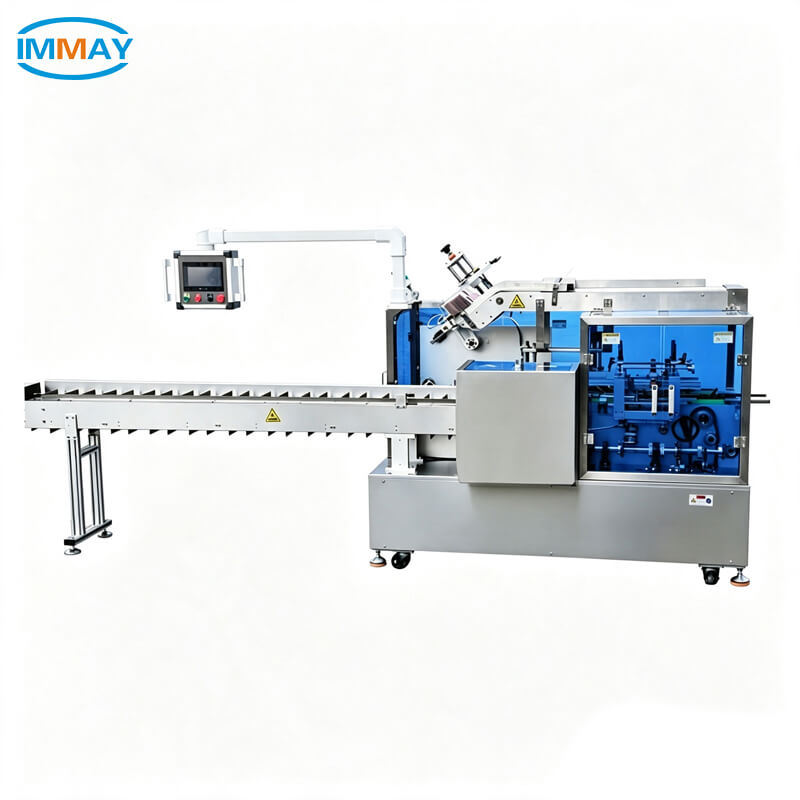

Automatic Cartoning Machine for Bottles, Tubes, Sachets, Blister Packs & More

An automatic cartoning machine automatically places products into cartons, closes the carton, and outputs finished packages. It can handle bottles, tubes, sachets, blister packs, jars, soaps, and many other products that require secondary carton packaging.

It is designed for manufacturers in cosmetics, pharmaceuticals, food, personal care, electronics, household products, and other industries that need to automate the cartoning process. The machine can operate independently or connect with upstream and downstream packaging equipment.

By automating carton feeding, opening, product insertion, and carton closing, the machine reduces repetitive manual work and provides more consistent packaging output. The suitable configuration depends on the product, carton design, production capacity, and required feeding method.

Is This Automatic Cartoning Machine Suitable for Your Products?

This automatic cartoning machine is suitable for a wide range of products that need to be packed into folding cartons. The examples below represent common applications across different industries.

Other products may also be suitable depending on their size, shape, weight, orientation, and feeding requirements. Custom feeding solutions are available for products with special handling needs.

Which Carton Styles Can This Machine Handle?

The automatic cartoning machine can be configured for different folding carton structures according to the carton design, dimensions, opening method, and sealing requirements. Common carton styles include:

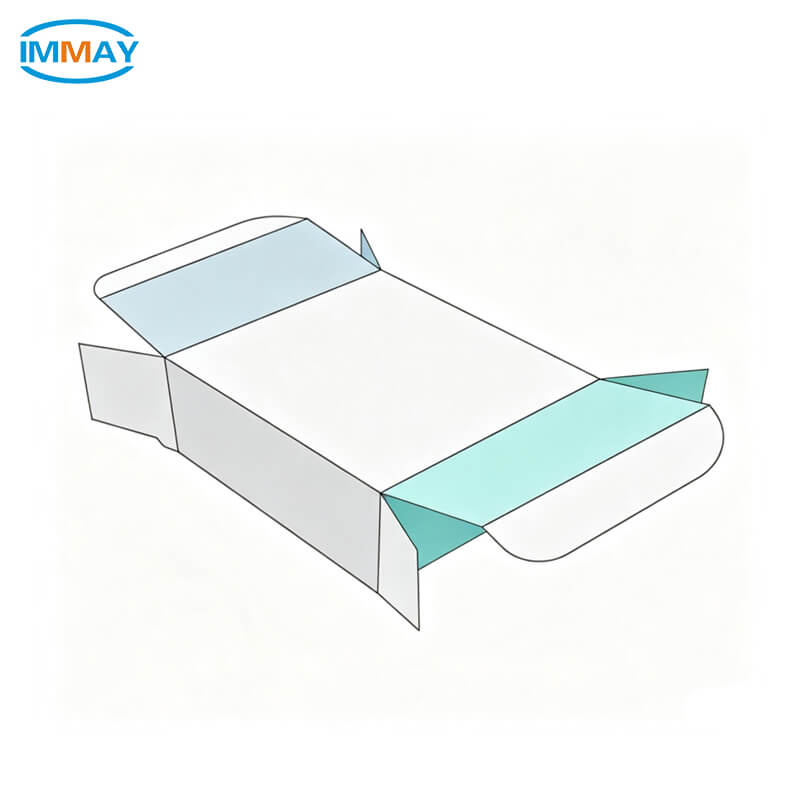

Straight Tuck End Carton

A folding carton with top and bottom tuck flaps that fold in the same direction. Commonly used for cosmetics, personal care products, and small consumer goods.

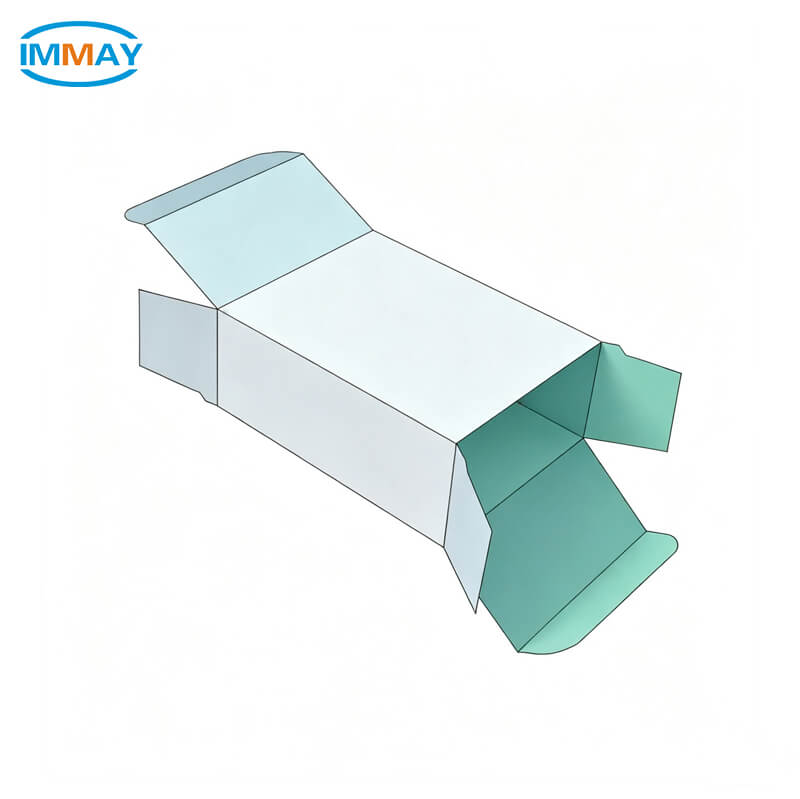

Reverse Tuck End Carton

A folding carton with top and bottom tuck flaps that fold in opposite directions. It is one of the most common folding carton structures.

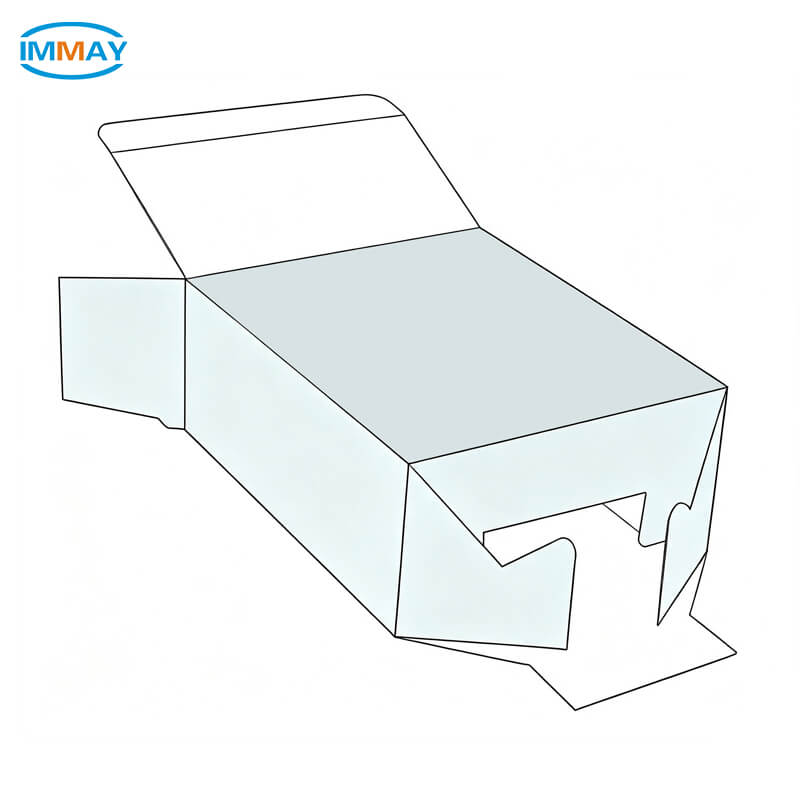

Lock Bottom Carton

A carton with an interlocking bottom structure that provides stable support for the packaged product. It is suitable for relatively heavier products.

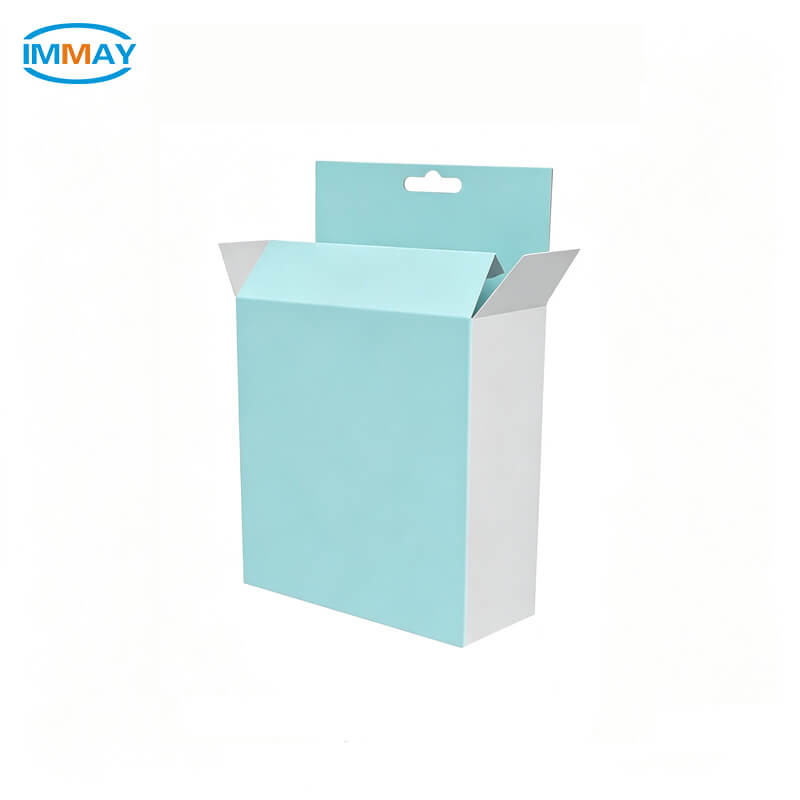

Hang Tab Carton

A carton with a hanging tab or display hole at the top, commonly used for retail products such as small electronics, cosmetics, and consumer goods.

How Does the Automatic Cartoning Process Work?

The automatic cartoning process synchronizes product feeding, carton handling, and carton closing into a continuous packaging cycle. Sensors and the control system coordinate each step according to the product and carton position.

Product Feeding → Product Detection → Carton Picking → Carton Opening → Product Insertion → Leaflet Insertion (Optional) → Carton Closing → Finished Carton Output

The machine automatically detects product and carton positions before each operation, helping maintain stable timing between the feeding, loading, and closing stations. The exact process can be configured according to the product type, carton structure, and packaging requirements.

Why Do Manufacturers Upgrade from Manual Cartoning to Automatic Cartoning?

Manual cartoning can work for small production volumes, but repetitive carton loading and closing can become difficult to maintain as production volume increases. Automatic cartoning provides a more consistent packaging process while reducing repetitive manual handling.

Automatic cartoning is particularly useful when manufacturers need to increase production capacity, reduce repetitive manual work, or maintain more consistent carton handling across longer production runs.

What Makes This Automatic Cartoning Machine Reliable for Continuous Production?

For continuous cartoning, machine reliability depends on how accurately the feeding, carton handling, product insertion, and closing stations work together. The following machine configurations are designed to support stable operation and consistent packaging performance during repeated production cycles.

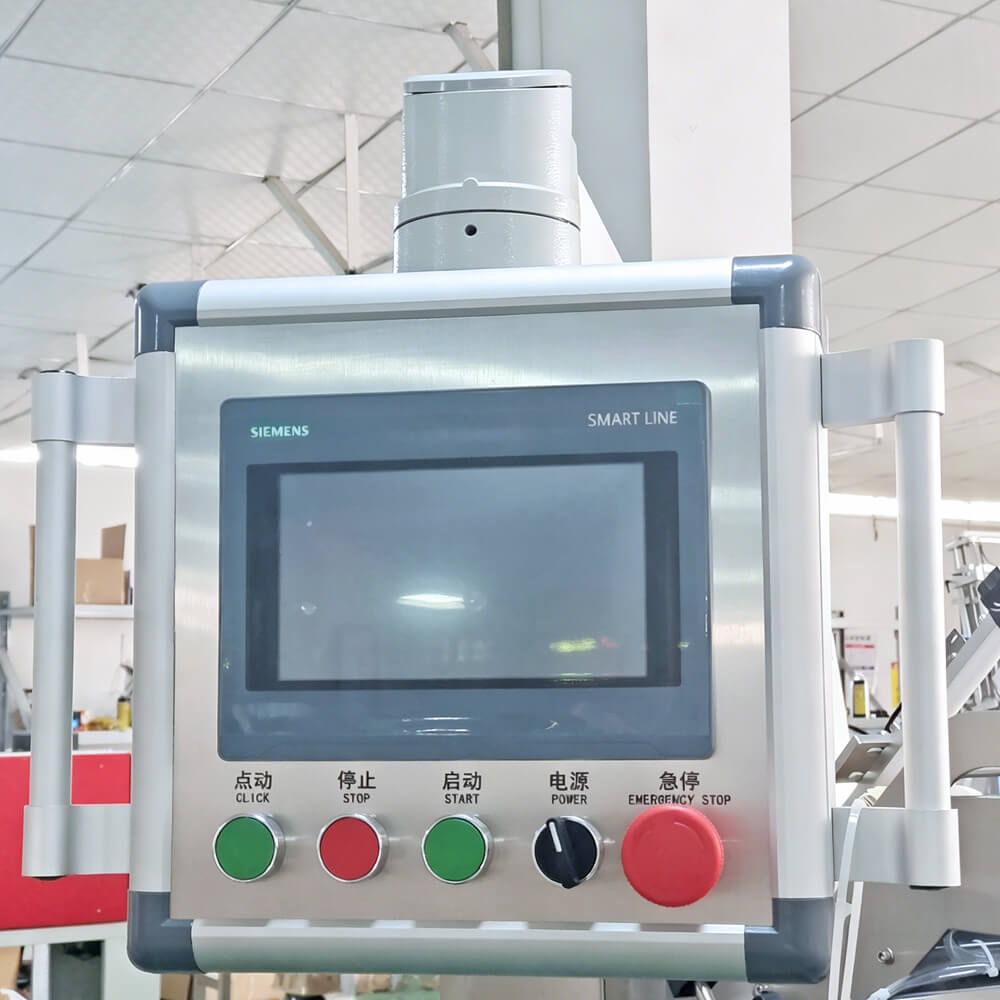

PLC Control

The PLC coordinates the main machine operations and allows different stations to work according to a consistent sequence. This helps simplify operation and maintain stable production cycles.

Precise Positioning

Sensor provides precise control of product positioning and insertion timing. This is particularly useful when products must be accurately aligned with the carton before insertion.

Photoelectric Detection

Photoelectric sensors monitor product and carton positions during operation. If the expected product or carton is not detected, the relevant operation can be stopped to reduce empty pushes, carton waste, and incorrect packaging.

Mechanical Cam System

The mechanical cam system coordinates repeated mechanical movements at different stations. Its synchronized motion helps maintain consistent timing during continuous cartoning operations.

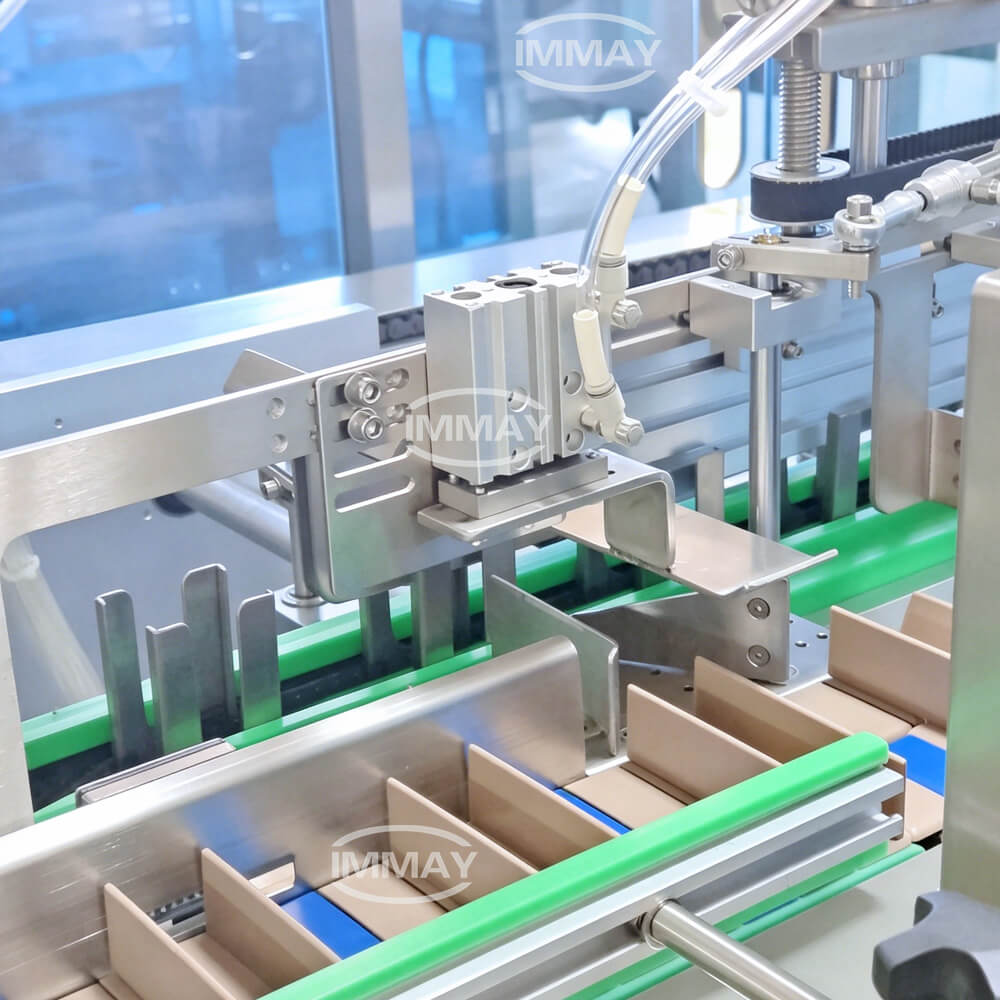

Pneumatic System

Pneumatic actuators provide fast and repeatable movement for operations such as carton gripping, opening, and other mechanical actions. This helps different stations operate smoothly within the same packaging cycle.

Heavy-Duty Frame

A rigid machine frame provides stable support for the transmission and operating components. This helps reduce vibration during continuous operation and supports consistent machine movement over longer production runs.
