Industrial Toothpaste Mixing Machine

Producing consistent toothpaste at an industrial scale requires more than simply combining ingredients in a mixing vessel. Different formulations and varying batch requirements call for a mixing system that can be configured around the actual production process.



The industrial toothpaste mixing machine provides a purpose-built solution for toothpaste manufacturers, bringing ingredient preparation and final product mixing into a structured production system. With configurations tailored to the formulation, batch size, and production requirements, it helps manufacturers establish a more consistent and manageable toothpaste production process while maintaining the flexibility to produce different formulations.



Industrial Toothpaste Mixing Machine for Toothpaste Production

An industrial toothpaste mixing machine is a production system used to prepare and mix toothpaste formulations before the finished product moves to the next stage of processing. Rather than relying on a single mixing vessel, the system can combine several preparation and mixing units to handle different ingredients and process stages in an organized production flow.



Depending on the formulation and production requirements, the system can include a main mixing tank, powder mixing tank, water mixing tank, optional oil mixing tank, and control system. The different units work together to prepare ingredients and bring them into the main mixing process, while the overall configuration can be adapted to the required batch size, formulation, and production capacity.



How Does a Toothpaste Mixing Machine Work?

The toothpaste mixing process begins with the preparation of different ingredients before they are brought together in the main mixing tank. Depending on the formulation, water-soluble ingredients and powdered materials can be prepared separately, while an oil phase can also be prepared when required. These prepared materials are then transferred to the main mixing tank for final mixing and homogenization.



The typical process can be illustrated as:

Water Phase Mixing → Oil Phase Mixing(Optional) → Powder Mixing → Transfer to Main Mixing Tank → Mixing (Dispersion and Homogenization) → Vacuum Deaeration → Finished Toothpaste



Water Phase Mixing

The water mixing tank is used to prepare the water phase and dissolve water-soluble ingredients before the prepared material is transferred to the main mixing process.



Oil Phase Mixing — Optional

For formulations that require a separate oil phase, the optional oil mixing tank can be used to prepare and mix oil-soluble ingredients before they are transferred to the main mixing tank.



Powder Mixing

Powder ingredients are prepared and mixed before being introduced into the main mixing tank. This stage helps disperse the powdered materials and prepares them for incorporation into the toothpaste formulation.



Transfer to Main Mixing Tank

After the different ingredient phases have been prepared, they are transferred to the main mixing tank according to the formulation and production process. The main mixing tank then brings the prepared materials together for the final processing stage.



Mixing, Dispersion and Homogenization

In the main mixing tank, the prepared ingredients are thoroughly mixed and dispersed. The scraper agitator supports the movement and mixing of the toothpaste formulation, while the integrated high-shear homogenizer provides additional dispersion and homogenization.



Vacuum Deaeration

After mixing and homogenization, the vacuum function of the main mixing tank is used for deaeration. It helps remove entrained air from the toothpaste before the finished product is discharged for the next stage of production.



Finished Toothpaste

Once the required mixing, dispersion, homogenization, and deaeration processes are completed, the finished toothpaste can be discharged from the main mixing tank and transferred to the subsequent production stage.



Main Components of the Toothpaste Mixing Machine

An industrial toothpaste mixing machine consists of several processing and control units that work together to prepare, mix, homogenize, and deaerate the toothpaste formulation. The configuration can be adjusted according to the formulation, batch size, and production requirements, with the main mixing tank serving as the central processing unit.



Main Mixing Tank

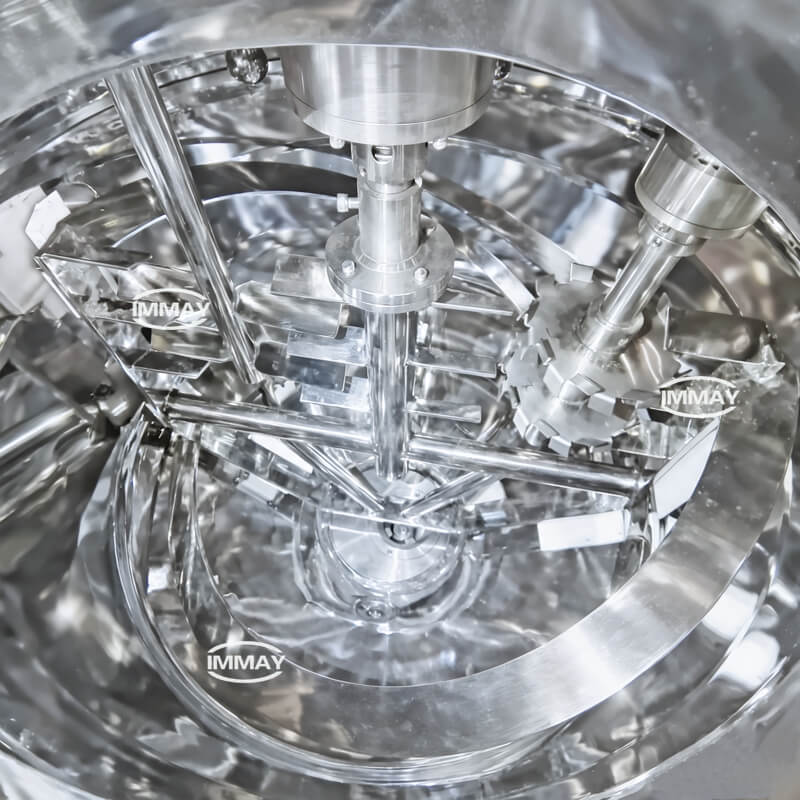

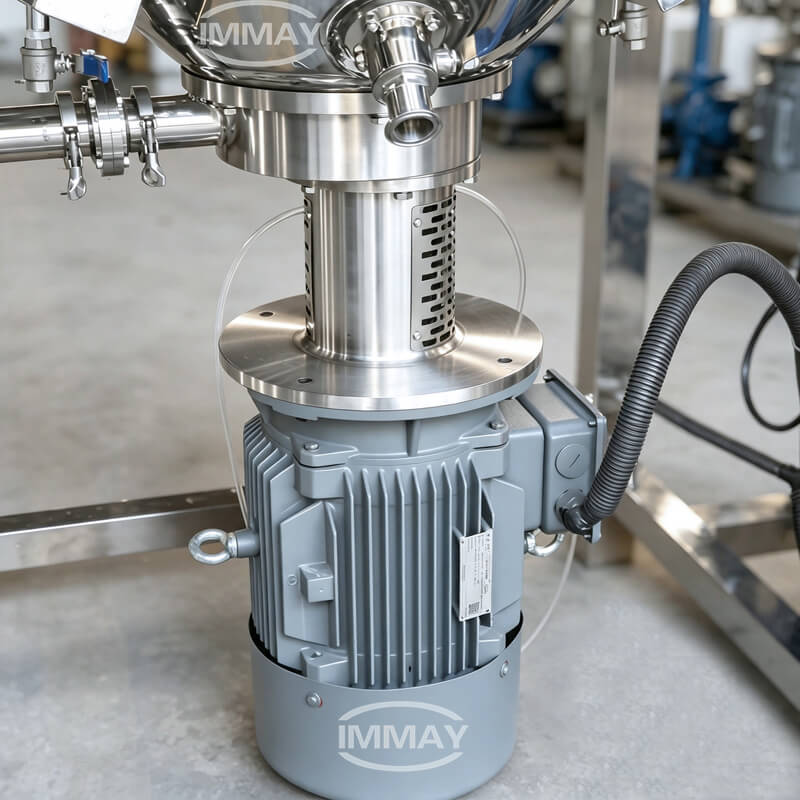

The main mixing tank is the core of the toothpaste mixing machine, where the prepared ingredients are brought together for final mixing and homogenization. It is equipped with a scraper anchor agitator and a high speed disperse to support the mixing of the toothpaste formulation and an integrated high-shear homogenizer for further homogenization.



The main mixing tank also incorporates a vacuum function for deaeration, helping remove entrained air from the product during processing. A jacketed structure can be used for heating or cooling according to the formulation and process requirements. After processing is completed, the finished toothpaste is discharged from the main mixing tank for the next production stage.



Powder Mixing Tank

The powder mixing tank is used to prepare and mix powdered ingredients before they are transferred to the main mixing tank. It provides a dedicated stage for powder preparation, helping disperse powdered materials before they are incorporated into the final toothpaste formulation.



Water Mixing Tank

The water mixing tank is used for water-phase preparation. Water-soluble ingredients can be dissolved and mixed in this tank before the prepared water phase is transferred to the main mixing tank according to the production process.



Oil Mixing Tank — Optional

An oil mixing tank can be added when the toothpaste formulation requires a separate oil-phase preparation step. It provides a dedicated vessel for mixing oil-soluble ingredients before the prepared oil phase is transferred to the main mixing tank.



Control System

The control system coordinates the operation of the mixing machine and allows key processing parameters to be monitored and adjusted during production. Depending on the configuration, it can manage mixing speed, homogenizer operation, vacuum deaeration, temperature control, and the operation of individual tanks and transfer components.



Toothpaste Mixing Machine Specifications

Item	Specification
Working Capacity	50–5000 L
Tank Material	Stainless Steel
Control System	Push-Button or PLC Control
Heating Method	Electric Heating or Steam Heating
Cooling Method	Water Cooling
Vacuum Function	-0.08 MPa



Toothpaste Mixing Machine for Production Line Integration

The toothpaste mixing machine serves as the core mixing stage in a toothpaste production line, where prepared ingredients are processed into the finished toothpaste before filling. Its configuration can be connected with upstream ingredient preparation and downstream filling equipment according to the production process and factory layout.



A typical production line can be arranged as:

Industrial RO Water Treatment Machine → Toothpaste Mixing Machine→ Transfer Pump→ Stainless Steel torage Tank → Automatic Tube Filling and Sealing Machine



When selecting a suitable Toothpaste Mixing Machine, it is important to consider not only the toothpaste formulation itself but also how the mixing system will work with the rest of the production line. Factors such as upstream ingredient preparation, downstream filling capacity, material transfer, equipment layout, and overall production flow should be evaluated together to determine a configuration that fits the complete manufacturing process.



Customized Industrial Toothpaste Mixing Machine

Toothpaste production requirements can vary significantly from one manufacturer to another, so a standard machine configuration may not always be the most suitable choice. The Industrial Toothpaste Mixing Machine manufacturing by IMMAY can be configured according to the formulation, batch size, production capacity, and processing requirements of each project.



Customization can include the capacity and arrangement of the main mixing tank, powder mixing tank, water mixing tank, and optional oil mixing tank, as well as the agitator configuration, heating and cooling requirements, vacuum deaeration function, discharge arrangement, and control system. The configuration is selected according to how the toothpaste is prepared and how the equipment needs to operate within the production line.



Each toothpaste production project requires a different equipment configuration. By providing the toothpaste formulation, batch size, production capacity, and production process, buyers can work with the IMMAY to determine the appropriate tank capacities and machine configuration for your specific needs.

Main Details of Industrial Toothpaste Mixing Machine
