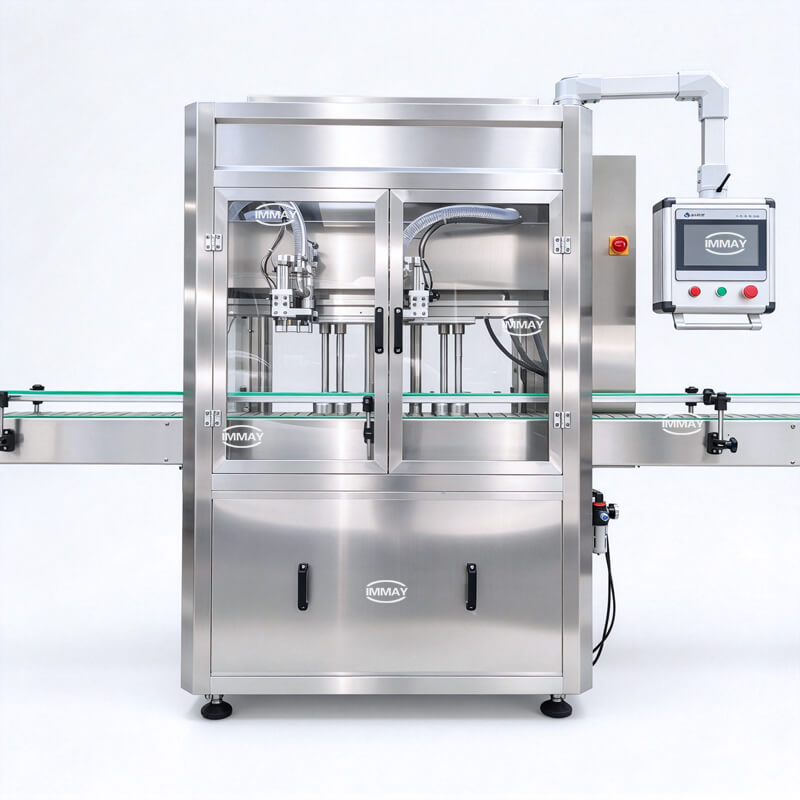

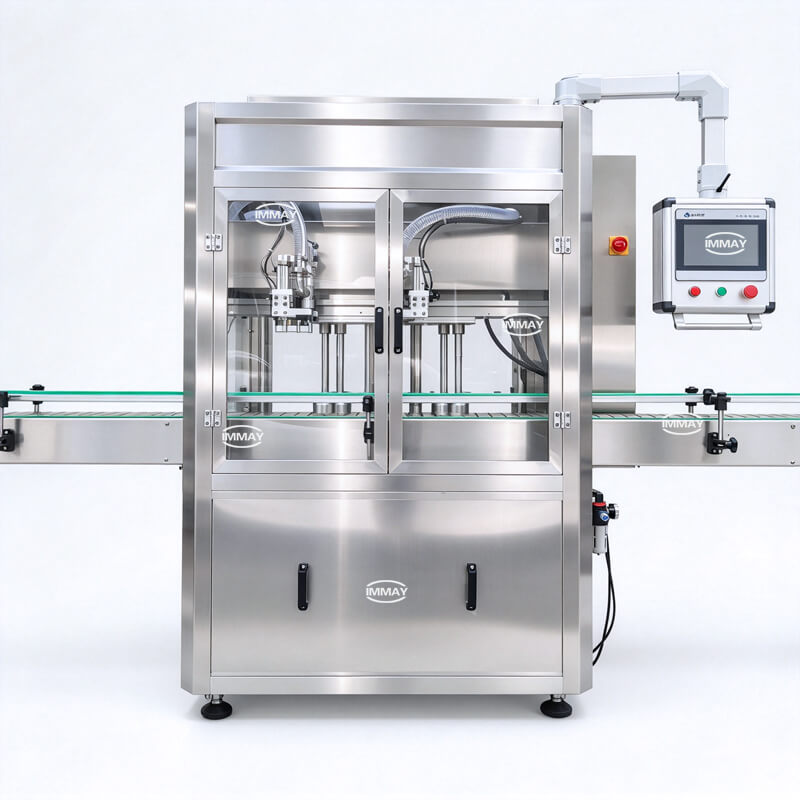

Automatic Liquid Filling Machine with Servo Tracking

What Is an Automatic Liquid Filling Machine with Servo Tracking?

An Automatic Liquid Filling Machine with Servo Tracking is used to automatically fill liquid products into bottles, jars, and similar containers. It is commonly used on production lines where containers move continuously through the filling station.

During filling, the filling nozzles travel with the containers along the conveyor. The filling process stays synchronized with container movement, allowing each container to be filled while it continues through the filling station.

Components of the Automatic Liquid Filling Machine with Servo Tracking

Product Hopper

The product hopper temporarily holds the product before filling. It provides a continuous product supply for the pump, keeping the filling system supplied during operation.

Pump Feeding System

The pump feeding system transfers the product from the hopper to the filling nozzles. It provides the product flow required for the filling process and keeps the product moving from the supply side to the filling side.

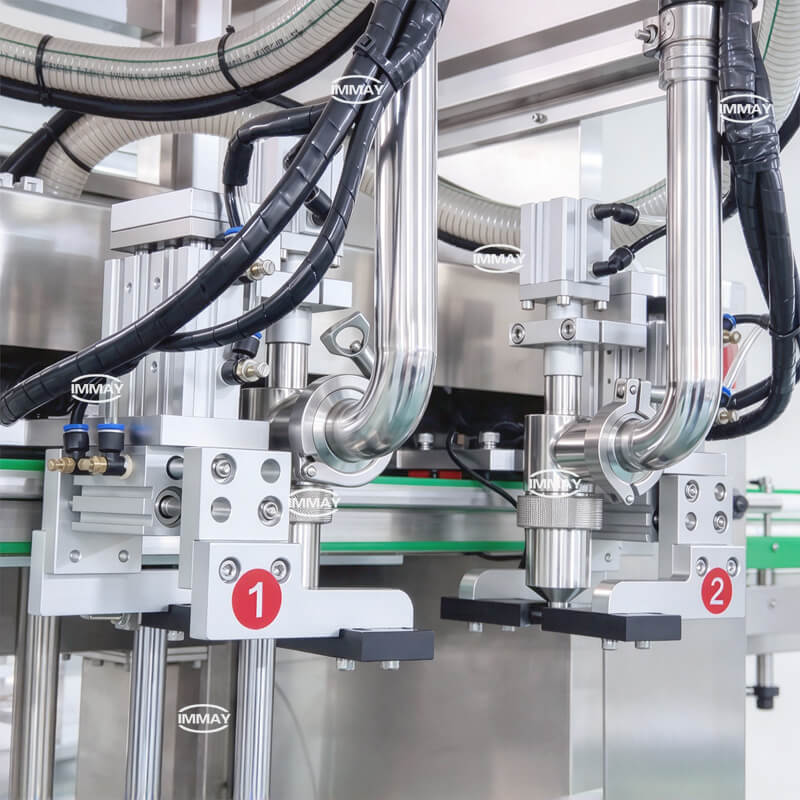

Filling Nozzles

The filling nozzles dispense the product into the containers. They are the part of the machine that carries out the actual filling operation and deliver the product into each container as it passes through the filling station.

Servo Tracking System

The servo tracking system moves the filling nozzles together with the containers during filling. It keeps the nozzles aligned with the moving containers so that filling can continue while the containers travel along the conveyor.

Conveyor System

The conveyor moves the containers through the filling station. It brings empty containers into the filling area, carries them through the filling process, and then moves the filled containers toward the next production stage.

Control System

The control system manages the operation of the filling machine as a whole. It coordinates the pump, filling nozzles, conveyor, and servo tracking system so that these operations work together according to the filling sequence.

How Does the Automatic Liquid Filling Machine with Servo Tracking Work?

The filling process starts with the product being supplied to the hopper. The pump draws the product from the hopper and sends it to the filling nozzles.

At the same time, empty containers are carried into the filling station by the conveyor. Once the containers reach the filling position, the filling nozzles move with them under servo control and dispense the product while the containers continue moving forward.

When the filling volume is reached, the nozzles complete the filling cycle and move back to the starting position for the next group of containers. The filled containers then leave the filling station and continue to the next stage of the production line.

The complete filling sequence can be described as:

Product Supply → Pump Feeding → Container Conveying → Servo Tracking Filling → Filled Containers → Next Filling Cycle

What Products Can the Automatic Liquid Filling Machine with Servo Tracking Fill?

The machine can be used for low- to medium-viscosity products in several industries. The actual filling configuration depends on the product characteristics and filling requirements.

Cosmetics and Personal Care

• Toner

• Serum

• Shampoo

• Body Wash

• Lotion

• Mouthwash‌


Food and Beverage

• Water

• Milk

• Mayonnaise

• Tomato Sauce

• Chili Sauce

• Salad Dressing

• Syrup

• Cooking Oil

Household and Cleaning Products

• Liquid Soap

• Laundry Detergent

• Dishwashing Liquid

• Glass Cleaner

• Windshield Washer Fluid

• Fabric Softener

Technical Parameters of the Automatic Liquid Filling Machine with Servo Tracking

Main Details of the Automatic Liquid Filling Machine with Servo Tracking
