Industrial Massage Oil Mixing Machine

Massage oil is an oil-based liquid product used for body massage. Formulations can contain carrier oils, plant oils, fragrance, essential oils, botanical oils, and other oil-soluble ingredients. The viscosity and composition vary between formulations.

Massage oil manufacturing is generally carried out in batches. The required ingredients are added to a mixing tank, blended by an agitator, and then transferred to storage before filling.

How Is Massage Oil Manufactured?

The required oils and other ingredients are prepared and added to the mixing tank. The agitator then circulates the liquid through the vessel, bringing the different ingredients together during the mixing cycle.

Mixing continues until the batch reaches the required level of uniformity. The finished massage oil is then discharged from the mixing tank and transferred to a storage tank before filling.

A basic manufacturing flow is:

Raw Materials → Ingredient Addition → Mixing → Storage → Filling → Packaging

The mixing tank is the main processing vessel in this stage, and the agitator provides the movement needed to blend the batch.

What Does Massage Oil Require from the Mixing Equipment?

Massage oil is a low-viscosity oil-based liquid, so the mixing system needs to create sufficient circulation throughout the batch for the different ingredients to blend evenly.

An anchor agitator with wall and bottom scrapers creates circulation throughout the working volume of the tank. As the agitator rotates, the massage oil moves through the vessel while the scrapers keep the product moving along the tank walls and bottom. This allows the different oils and other ingredients to move through the batch during mixing.

The parts of the mixing tank that come into contact with the massage oil are made of stainless steel. Stainless steel provides a hygienic product-contact surface for mixing and handling the finished oil.

Most massage oil formulations can be mixed at room temperature. If a formulation contains ingredients that need to be softened or melted before blending, a heating jacket can be added to the mixing tank.

What Is an Industrial Massage Oil Mixing Machine?

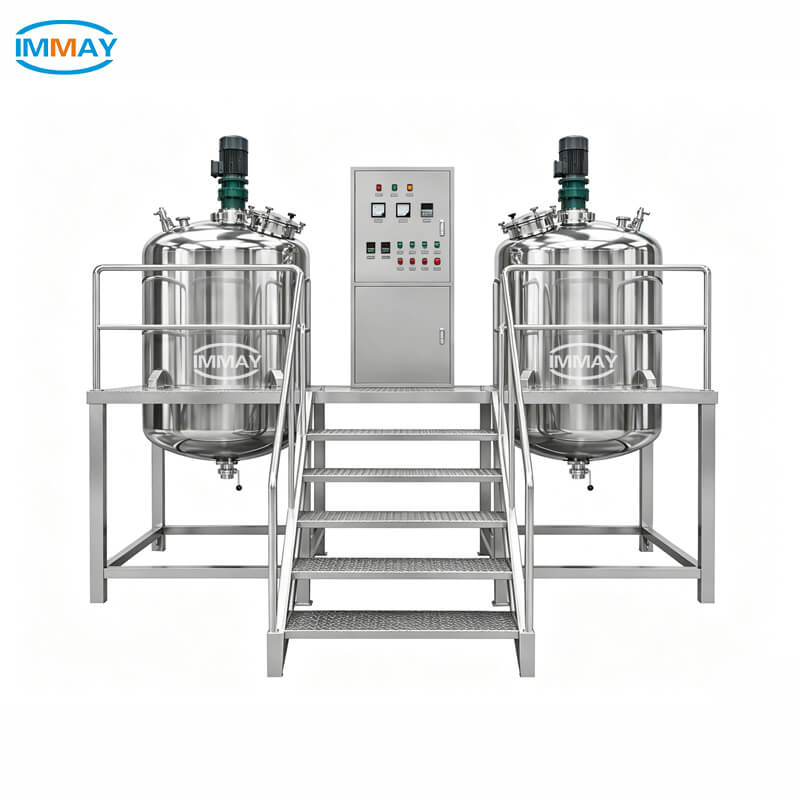

An industrial massage oil mixing machine is a stainless steel batch mixer designed for blending massage oil ingredients.

The mixing tank holds the ingredients during the batch, the agitator circulates the product, and the motor drives the agitator. The control box operates the mixing system.

The machine can be configured for different working capacities and formulations. Tank dimensions, agitator arrangement, mixing speed, motor power, and heating can be selected according to the required manufacturing process.

Main Components of the Massage Oil Mixing Machine

Stainless Steel Mixing Tank

The stainless steel tank is the main vessel for ingredient charging and mixing. Its working capacity is selected according to the required batch size.

The tank can include an ingredient inlet, manhole, discharge outlet, and other connections required by the manufacturing layout.

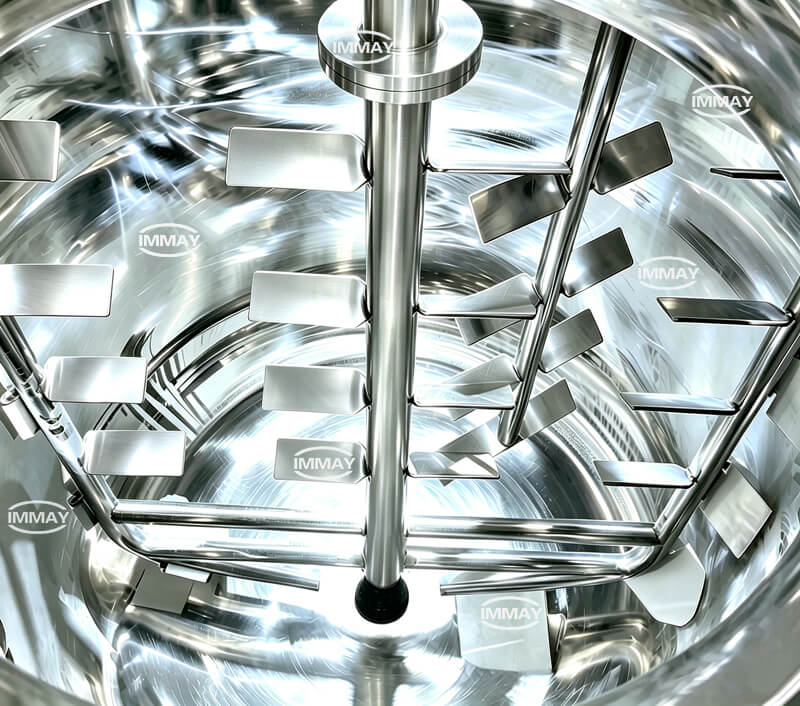

Mixing Agitator

The machine uses an anchor agitator with wall and bottom scrapers. The agitator creates circulation throughout the tank and keeps the massage oil moving during the mixing cycle.

The wall and bottom scrapers keep the product moving along the tank walls and bottom as the agitator rotates, helping the different ingredients move through the batch.

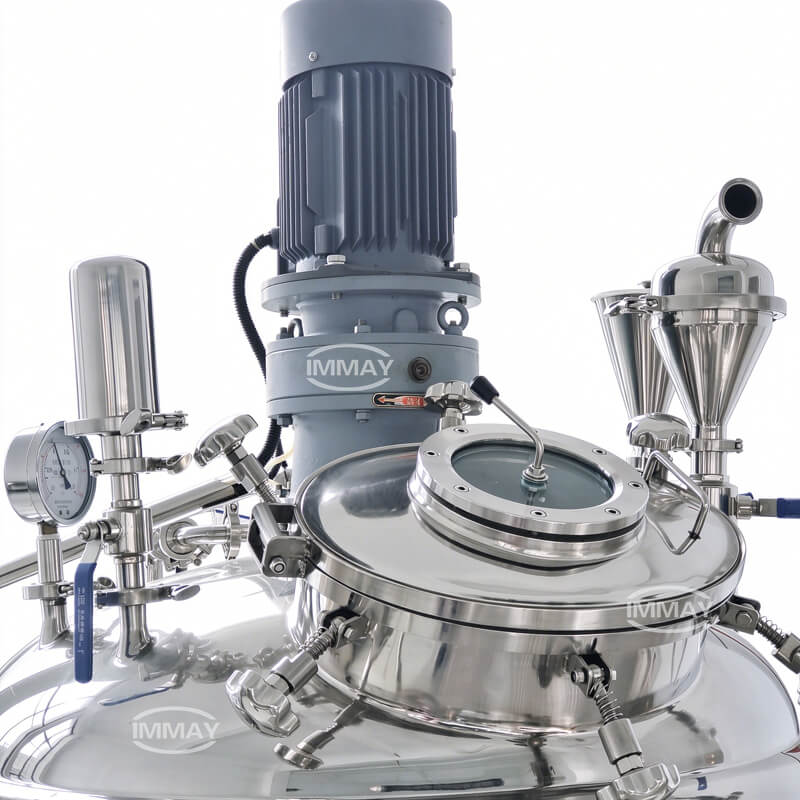

Mixing Motor

The mixing motor drives the anchor agitator during mixing. The motor power is selected according to the tank capacity and agitator arrangement.

Variable-speed control can be included when the manufacturing process requires different mixing speeds.

Control Box

The control box contains the electrical controls for operating the mixing machine. It can include motor start/stop controls, mixing speed adjustment, and other operating functions required by the equipment.

Technical Parameters of the Massage Oil Mixing Machine

Massage Oil Mixing Machine in a Manufacturing Line

The massage oil mixing machine can be connected with storage and filling equipment as part of a complete massage oil production line.

Raw Materials → Massage Oil Mixing Machine → Stainless Steel Storage Tank → Filling Machine → Packaging

After mixing, the finished massage oil is discharged from the mixing machine and transferred to the storage tank. The storage tank serves as the intermediate stage between batch mixing and filling, allowing the two processes to operate according to the manufacturing schedule.

Custom Industrial Massage Oil Mixing Machine

Massage oil formulations and batch requirements vary between manufacturing projects. The mixing machine can be configured according to the required working capacity, agitator arrangement, mixing speed, motor power, heating requirements, and equipment dimensions.

IMMAY manufactures stainless steel mixing equipment for liquid product manufacturing and can supply individual or multiple mixing machines or connected equipment for a complete massage oil production line. Equipment is manufactured according to the required batch capacity and process arrangement, with installation support and commissioning available after delivery.

Main Details of Massage Oil Mixing Machine
