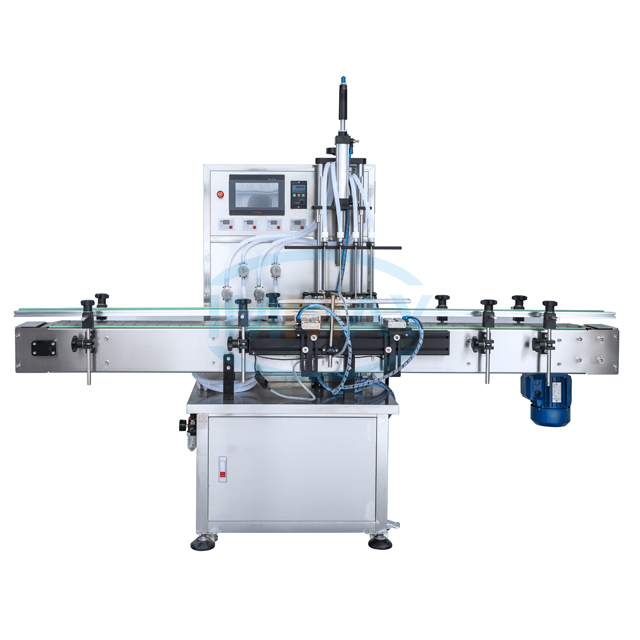

Automatic bottle filling machine for liquid products
Features:
1. The automatic liquid filling machine adopts anti corrosion stainless steel gear pump, which is very suitable to fill corrosive liquid.
2. The filling machine anti-drip glass valve ensures no dropping during filling.
3. The automatic filling machine is linear bottle feeding design, great compatibility of packaging materials, it can fill a wide variety of bottles, easy and quick to change packaging materials and filling.
4. The filling machinery material adopt stainless steel.
5. The filling equipment nozzle is lifting design, liquid will not spill out when filling.
6. 1 nozzle or more nozzle filling can be set.
7. Widely used in food, medicine, daily chemical and other industries; such as alcohol, disinfectant, essential oil, essence, toner, makeup remover, liquor, mineral water, liquid medicine and chemical products.
Technical Parameter:
Item | Configuration |
Filling Range | 5ml-5L(adjustable) |
Filling Speed | 20-50 Bottles/min.(depends on filling volume) |
Pump Material | 316L stainless steel、PEEK |
Filling Precision | 0.5%≤(Depends on material) |
Max. Flow | Single head 5L/Min. |
Bottle Height | 30-250mm |
Bottle Width | 20-100mm |
Conveyor Material | Chain plate conveyor belt |
Conveyor Speed | 0-20 meter/min. ( speed adjustable) |
Conveyor Width | 138mm(can be customized) |
Voltage | 220V 50Hz , single phase ( can be customized) |
Size | 2000*760*1750mm |
Net Weight | 155kg |
Project Cases
Recommended Product
Q: Which information shall I offer before getting solution?
A: Which product will you fill?
B: What are your bottles volume range?
C: How many bottles you will fill per hour?
Q:Which machine should I choose?
A:It depends on your material character (such as corrosive material or not, liquid or low viscous, middle viscous high viscous cream?), we will offer you tailor-made design.
Q:How can you control the quality and delivery?
A:Production strictly according to CE / ISO standards.
B:All our machines will be tested before packaging. wooden packaing is safe during shipping.
Q: What is your terms of payment ?
A: 30% deposit before production, 70% balance before delivery, L/C is acceptable as well.
Q: How long is your delivery time?
A: Generally it is 15-30 days, Depends on production schedule.
Born in Yangzhou, China, Immay is a leading enterprise specializing in R&D, production and sales of equipment in cosmetics, pharmaceutical, food and beverage, daily health products, chemical and other industries.
As a leading manufacturer of cream and liquid processing equipment, we have developed a variety of machines, including reverse osmosis water treatment equipment, vacuum homogenizer mixer, mixing tank, storage tank, filling machine, capping machine, packaging machine and labeling machine..
The spirit of "dedication and excellence" is deeply rooted in the corporate culture of Immay. We focus on professional and meticulous processes and regard quality as soul of our company.
We keep pace with times, explore and innovate, keep up with the pace of industrial intelligent manufacturing, continue to promote technological innovation, continue to research and develop more advanced and better products, and strive to support customers to improve production capacity and increase profits through more efficient and intelligent equipment.
