Small-Scale Circulating Ultrasonic Mixing Machines for Liquid Processing

Circulating Inline Ultrasonic Processing for Consistent Dispersion

In small-scale liquid formulation, achieving uniform dispersion is not only about applying energy, but also about how the material moves through the process. When ultrasonic treatment is applied in a static environment, energy distribution is often uneven, which can lead to inconsistent results.

A more effective approach is to combine mixing, transfer, and ultrasonic treatment into a structured workflow. By introducing circulation, materials can pass through the ultrasonic zone multiple times, allowing dispersion and refinement to develop progressively.

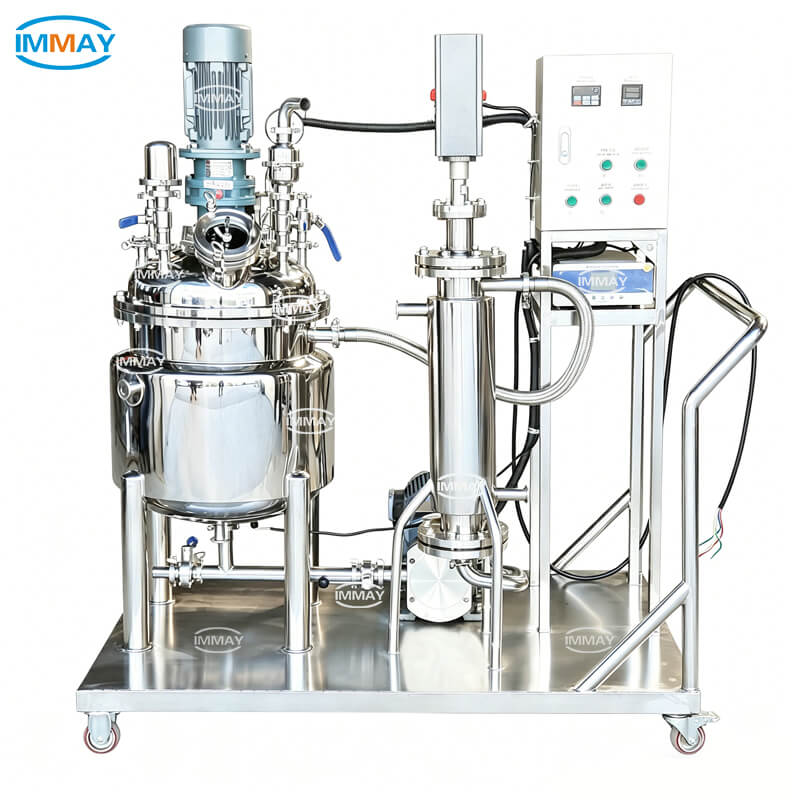

This small-scale ultrasonic mixing system is designed around this principle, integrating a stainless steel mixing tank, a transfer pump, and an inline ultrasonic unit into a continuous process loop.

How Material Flows in a Circulating Ultrasonic Mixing Machine

The process begins in a stainless steel mixing tank, where raw materials are blended into a uniform base.

Once pre-mixing is complete, a rotor pump transfers the material into a pipeline. Within the pipeline, the material passes through an ultrasonic homogenization section, where energy is applied during flow.

After treatment, the material can either be discharged or returned to the tank for further circulation. This creates a loop where the material is processed repeatedly under stable flow conditions.

Instead of relying on a single treatment stage, the final result is achieved through multiple circulation cycles.

Why Circulation Improves Dispersion in Ultrasonic Mixing

Ultrasonic processing is highly localized, meaning only the material within the active zone receives direct energy.

In a static setup, this often results in uneven treatment across the batch. By introducing flow and circulation, the process becomes more uniform.

Uniform Energy Exposure

All material passes through the same ultrasonic zone, reducing variation.

Repeatable Processing Behavior

Ultrasonic power and circulation time define how the material is treated, making results easier to reproduce.

Progressive Refinement

Dispersion improves gradually as the material cycles through the system multiple times.

Core Processing Units in a Circulating Ultrasonic Mixing Machine

Stainless Steel Mixing Tank for Initial Blending

The mixing tank is used to combine raw materials and create a stable starting mixture. Agitation ensures that components are evenly distributed before entering the ultrasonic stage.

Heating or cooling can be included when temperature influences formulation behavior.

Rotor Pump for Material Transfer and Flow Stability

The rotor pump drives the circulation of material through the system.

Its role includes:

• Maintaining a steady flow rate

• Feeding material into the ultrasonic section

• Supporting continuous or recirculating operation

Flow stability directly affects how effectively ultrasonic energy is applied.

Inline Ultrasonic Unit for Dispersion and Particle Reduction

The ultrasonic unit is installed within the pipeline, allowing material to be processed during flow.

It is responsible for:

• Breaking particle agglomerates

• Improving dispersion uniformity

Because the process is circulation-based, results are achieved through repeated passes rather than a single treatment.

Process Advantages of a Circulation-Based Ultrasonic Mixing System

Consistent Batch Results

Circulation ensures that all material experiences similar processing conditions.

Adjustable Process Parameters

Processing time and ultrasonic power can be adjusted based on formulation needs.

Reduced Local Variation

Continuous movement minimizes uneven treatment within the batch.

Main Parameters of Liquid Ultrasonic Mixing Machine

Model	Volume	Stirring Power	Heating and Cooling	Ultrasonic Power
IMA-UM-50	50L	1.1KW	Optional	450W
IMA-UM-100	100L	1.5KW	Optional	600W
IMA-UM-200	200L	2.2KW	Optional	750W
IMA-UM-300	300L	3KW	Optional	1050W

Application Scenarios of Circulating Ultrasonic Mixing Machines

This system is designed for small-batch production of low-viscosity liquid formulations requiring consistent dispersion and uniform material distribution under a circulation-based ultrasonic processing environment.

Liquid materials are continuously or repeatedly circulated through an inline ultrasonic unit, allowing multiple processing passes that improve dispersion uniformity across the entire batch.

Main applications include:

• Production of low-viscosity liquid emulsions

• Manufacturing of functional liquid formulations

• Small-batch liquid systems requiring consistent dispersion quality
